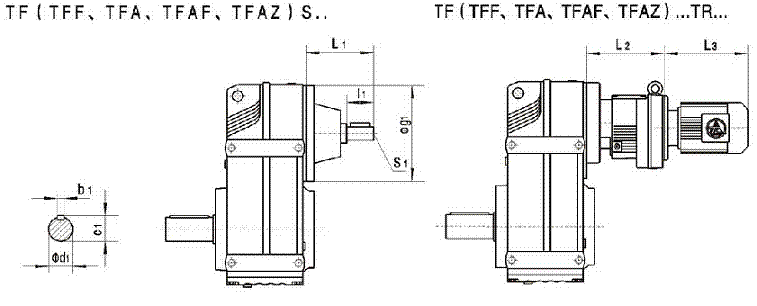

TF系列平行轴斜齿轮减速机的安装尺寸（型号为TF..S）
|
型号 |
d1 |
L1 |
l1 |
S1 |
C1 |
b1 |
g1 |
|
TF..S38 |
16k6 |
115 |
40 |
M5 |
18 |
5 |
120 |
|
TF..S48 |
16k6 |
115 |
40 |
M5 |
18 |
5 |
120 |
|
TF..S58 |
19k6 |
120 |
40 |
M6 |
21.5 |
6 |
160 |
|
TF..S68 |
19k6 |
120 |
40 |
M6 |
21.5 |
6 |
160 |
|
TF..S78 |
24k6 |
140 |
50 |
M8 |
27 |
8 |
200 |
|
TF..S88 |
28k6 |
180 |
60 |
M10 |
31 |
8 |
250 |
|
TF..S98 |
38k6 |
220 |
80 |
M12 |
41 |
10 |
300 |
|
TF..S108 |
42k6 |
270 |
110 |
M16 |
45 |
12 |
350 |
|
TF..S128 |
55m6 |
297 |
110 |
M20 |
59 |
16 |
450 |
|
TF..S158 |
70m6 |
374 |
140 |
M20 |
74.5 |
20 |
550 |
|
型号 |
电机机座号 |
L2 |
L3 |
|
型号 |
电机机座号 |
L2 |
L3 |
|
TF..38TR18
TF..48TR18 |
Y263.. |
175 |
≤208 |
|
TF..108TR78
TF..128TR78 |
Y2100L |
220 |
≤350 |
|
Y271.. |
175 |
≤266 |
|
Y2112M |
220 |
≤375 | ||
|
Y280 |
175 |
≤272 |
|
Y2132.. |
220 |
≤465 | ||
|
Y2160M |
220 |
≤600 | ||||||
|
TF..58TR38
TF..68TR38 TF..78TR38 |
Y263.. |
157 |
≤208 |
|
TF..128TR88 |
Y290.. |
272 |
≤295 |
|
Y271.. |
157 |
≤266 |
|
Y2100L |
272 |
≤320 | ||
|
Y280.. |
157 |
≤272 |
|
Y2112M |
272 |
≤340 | ||
|
Y290.. |
157 |
≤320 |
|
Y2132.. |
272 |
≤465 | ||
|
TF..88TR58 TF..98TR58 |
Y263.. |
187 |
≤198 |
|
Y2160.. |
272 |
≤600 | |
|
Y271.. |
187 |
≤266 |
|
Y2180.. |
272 |
≤665 | ||
|
Y280.. |
187 |
≤272 |
|
TF..158TR98 |
Y280.. |
320 |
≤248 | |
|
Y290.. |
187 |
≤320 |
|
Y290.. |
320 |
≤295 | ||
|
Y2100L |
187 |
≤350 |
|
Y2100L |
320 |
≤320 | ||
|
Y2112M |
187 |
≤375 |
|
Y2112M |
320 |
≤340 | ||
|
TF..108TR78 TF..128TR78 |
Y263.. |
220 |
≤198 |
|
Y2132.. |
320 |
≤425 | |
|
Y271.. |
220 |
≤266 |
|
Y2160.. |
320 |
≤600 | ||
|
Y280.. |
220 |
≤248 |
|
Y2180.. |
320 |
≤665 | ||
|
Y290.. |
220 |
≤295 |
|
Y2200L |
320 |
≤675 |
