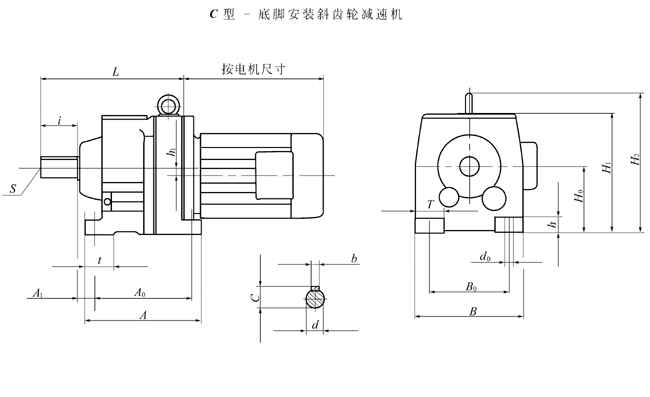

C底脚安装斜齿轮减速机安装尺寸
|
机型号 |
安装尺寸 |
轴伸尺寸 |
外型尺寸 | ||||||||||||||||
|
H0 |
A0 |
B0 |
A1 |
d0 |
d |
b |
c |
i |
s |
L |
A |
B |
H1 |
T |
h |
H2 |
t |
h1 | |
|
C17 |
75 |
110 |
110 |
18 |
9 |
20k6 |
6 |
22.5 |
40 |
M6 |
207 |
131 |
135 |
134 |
25 |
12 |
- |
28 |
- |
|
C27 |
90 |
130 |
110 |
25 |
9 |
25k6 |
8 |
28 |
50 |
M10 |
212 |
152 |
145 |
147 |
32 |
18 |
- |
27 |
3.4 |
|
C37 |
90 |
130 |
110 |
25 |
9 |
25k6 |
8 |
28 |
50 |
M10 |
232 |
160 |
145 |
151 |
35 |
18 |
- |
40 |
10.1 |
|
C47 |
115 |
165 |
135 |
30 |
14 |
30k6 |
8 |
33 |
60 |
M10 |
250 |
195 |
170 |
187 |
42 |
24 |
- |
50 |
14 |
|
C57 |
115 |
165 |
135 |
30 |
14 |
35k6 |
10 |
38 |
70 |
M12 |
270 |
200 |
190 |
187 |
55 |
24 |
- |
60 |
11.2 |
|
C67 |
130 |
195 |
150 |
30 |
14 |
35k6 |
10 |
38 |
70 |
M12 |
300 |
235 |
210 |
212 |
60 |
30 |
243 |
60 |
20.7 |
|
C77 |
140 |
205 |
170 |
35 |
18 |
40k6 |
12 |
43 |
80 |
M16 |
320 |
245 |
230 |
228 |
60 |
30 |
269 |
60 |
15.9 |
|
C87 |
180 |
260 |
215 |
40 |
18 |
50k6 |
14 |
53.5 |
100 |
M16 |
390 |
310 |
290 |
295 |
75 |
45 |
345 |
90 |
12.6 |
|
C97 |
225 |
310 |
250 |
40 |
22 |
60m6 |
18 |
64 |
120 |
M20 |
470 |
365 |
340 |
368 |
90 |
55 |
418 |
100 |
10.2 |
|
C107 |
250 |
370 |
290 |
45 |
26 |
70m6 |
20 |
74.5 |
140 |
M20 |
530 |
440 |
400 |
408 |
110 |
65 |
475 |
125 |
20.4 |
|
C137 |
315 |
410 |
340 |
50 |
33 |
90m6 |
25 |
95 |
170 |
M24 |
630 |
490 |
450 |
495 |
110 |
70 |
562 |
130 |
25.1 |
|
C147 |
355 |
500 |
380 |
50 |
39 |
110m6 |
28 |
116 |
210 |
M24 |
750 |
590 |
530 |
565 |
150 |
80 |
637 |
150 |
33.4 |
