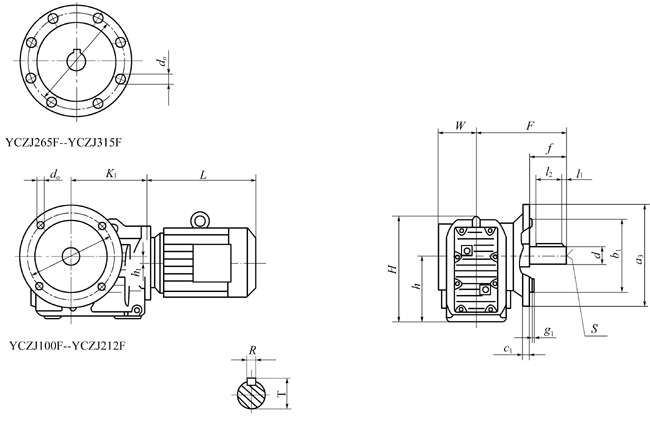

YCZJ100F-YCZJ315F 法兰安装
|
机座号 |
a3 |
b1 |
c1 |
e |
g1 |
h1 |
F |
H |
k1 |
d0 |
h |
w |
d |
f |
l1 |
l2 |
T |
R |
s |
L |
|
YCZJ100F |
160 |
110j6 |
10 |
130 |
3.5 |
8.5 |
134 |
164 |
158 |
9 |
100 |
57.5 |
25k6 |
50 |
5 |
40 |
28 |
8 |
M10 |
参 照 电 机 尺 寸 |
|
YCZJ112F |
200 |
130j6 |
12 |
165 |
3.5 |
7.2 |
160 |
185 |
195 |
11 |
112 |
72 |
30k6 |
60 |
3.5 |
50 |
33 |
8 |
M10 | |
|
YCZJ140F |
250 |
180j6 |
15 |
215 |
4 |
20 |
193 |
226 |
208 |
13.5 |
140 |
86.5 |
40k6 |
80 |
5 |
70 |
43 |
12 |
M16 | |
|
YCZJ180F |
300 |
230j6 |
16 |
265 |
4 |
31.3 |
242 |
286 |
230 |
13.5 |
180 |
101 |
50k6 |
100 |
10 |
80 |
53.5 |
14 |
M16 | |
|
YCZJ212F |
350 |
250h6 |
18 |
300 |
5 |
25.9 |
270 |
338 |
286 |
17.5 |
212 |
138 |
60m6 |
120 |
5 |
110 |
64 |
18 |
M20 | |
|
YCZJ265F |
450 |
350h6 |
22 |
400 |
5 |
32.3 |
332 |
414 |
306 |
17.5 |
265 |
171 |
70m6 |
140 |
7.5 |
125 |
74.5 |
20 |
M20 | |
|
YCZJ315F |
450 |
350h6 |
22 |
400 |
5 |
52 |
386 |
500 |
409 |
17.5 |
315 |
175 |
90m6 |
170 |
5 |
160 |
95 |
25 |
M24 |
|
机座号 |
a3 |
b1 |
c1 |
e |
g1 |
h1 |
F |
H |
k1 |
d0 |
h |
w |
d |
f |
l1 |
l2 |
T |
R |
S |
L |
|
YCZJ375F |
550 |
450h6 |
25 |
500 |
5 |
53 |
466 |
592 |
458 |
17.5 |
375 |
203 |
110m6 |
210 |
5 |
180 |
116 |
28 |
M24 |
按电机尺寸 |
|
YCZJ450F |
660 |
550h6 |
28 |
600 |
6 |
71.7 |
520 |
705 |
495 |
22 |
450 |
250 |
120m6 |
210 |
5 |
200 |
127 |
32 |
M24 |
