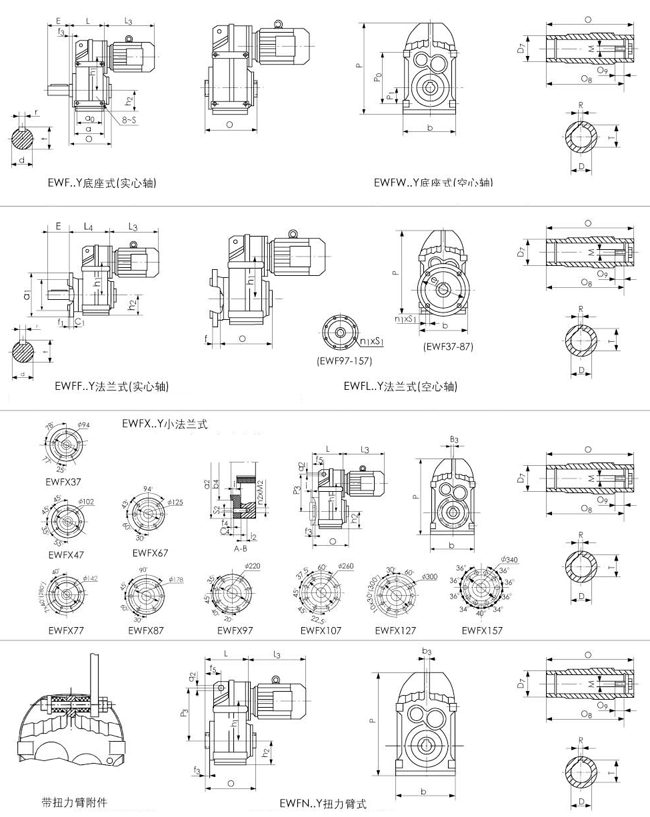

EWF平行轴斜齿轮减速机安装型式、输出方式尺寸图表
|
型号 |
EWF37 |
EWF47 |
EWF67 |
EWF77 |
EWF87 |
EWF97 |
EWF107 |
EWF127 |
EWF157 |
|
a |
95 |
109 |
131 |
165 |
195 |
240 |
260 |
316 |
364 |
|
ao |
77 |
93 |
112 |
140 |
165 |
205 |
220 |
270 |
310 |
|
a1 |
160 |
200 |
250 |
300 |
350 |
450 |
450 |
550 |
660 |
|
a2 |
110 |
120 |
155 |
170 |
215 |
260 |
304 |
350 |
400 |
|
b |
165 |
180 |
212 |
270 |
330 |
400 |
450 |
530 |
660 |
|
b1 |
110 |
130 |
180 |
230 |
250 |
350 |
350 |
450 |
550 |
|
b3 |
12 |
14 |
16 |
20 |
26 |
30 |
36 |
40 |
45 |
|
b4 |
80 |
80 |
105 |
125 |
155 |
180 |
210 |
250 |
290 |
|
C1 |
10 |
12 |
15 |
16 |
18 |
22 |
22 |
25 |
28 |
|
C4 |
11 |
11 |
12 |
14 |
15 |
18 |
22 |
28 |
58 |
|
D |
30 |
35 |
40 |
50 |
60 |
70 |
90 |
100 |
120 |
|
D7 |
45 |
50 |
55 |
70 |
85 |
95 |
120 |
140 |
160 |
|
d |
25 |
35 |
40 |
50 |
60 |
70 |
90 |
100 |
120 |
|
E |
50 |
60 |
80 |
100 |
120 |
140 |
170 |
210 |
210 |
|
e1 |
130 |
165 |
215 |
265 |
300 |
400 |
400 |
500 |
600 |
|
f |
24 |
25 |
23 |
37 |
30 |
41.5 |
40.5 |
51 |
60 |
|
f1 |
3.5 |
3.5 |
4 |
4 |
5 |
5 |
5 |
5 |
6 |
|
f3 |
1.5 |
1.5 |
2 |
2 |
2 |
2 |
2.5 |
2.5 |
5 |
|
f4 |
3 |
3 |
3.5 |
3.5 |
4 |
4 |
4 |
5 |
5 |
|
f5 |
31.5 |
32 |
41 |
50 |
62 |
70 |
88 |
110 |
150 |
|
h1 |
112 |
128.1 |
159.5 |
200 |
246.7 |
285 |
332.4 |
382.6 |
447 |
|
h2 |
68 |
77 |
97 |
116 |
152 |
178 |
198 |
235 |
286 |
|
i |
9.5 |
9.5 |
10 |
12 |
13 |
16 |
19.5 |
25.5 |
25 |
|
i2 |
14 |
14 |
20 |
20 |
26 |
26 |
32 |
32 |
36 |
|
L |
110.5 |
134 |
160 |
192 |
220.5 |
274 |
312 |
367.5 |
443 |
|
L4 |
134.5 |
159 |
173 |
229 |
250.5 |
315.5 |
352.5 |
431 |
515 |
|
M |
M10 |
M12 |
M16 |
M16 |
M20 |
M20 |
M24 |
M24 |
M24 |
|
M2 |
M8 |
M8 |
M12 |
M12 |
M16 |
M16 |
M20 |
M20 |
M24 |
|
n1 |
4 |
4 |
4 |
4 |
4 |
8 |
8 |
8 |
8 |
|
n2 |
5 |
8 |
6 |
8 |
6 |
8 |
8 |
11 |
10 |
|
O |
120 |
150 |
180 |
210 |
240 |
300 |
350 |
410 |
500 |
|
O8 |
103 |
128 |
146 |
176 |
200 |
260 |
306 |
365 |
450 |
|
O9 |
17 |
22 |
29 |
32 |
34 |
36 |
40 |
40 |
40 |
|
P |
244 |
269 |
343 |
420 |
531 |
623 |
710 |
853 |
1024 |
|
PO |
115 |
145 |
190 |
240 |
310 |
350 |
400 |
450 |
540 |
|
P1 |
31 |
43 |
60 |
70 |
100 |
120 |
125 |
142 |
170 |
|
P3 |
158 |
170 |
218 |
278 |
346 |
395 |
485 |
550 |
660 |
|
q2 |
14 |
14 |
14 |
22 |
22 |
26 |
26 |
33 |
33 |
|
R |
8 |
10 |
12 |
14 |
18 |
20 |
25 |
28 |
32 |
|
r |
8 |
10 |
12 |
14 |
18 |
20 |
25 |
28 |
32 |
|
S |
M8 |
M10 |
M12 |
M16 |
M16 |
M20 |
M24 |
M30 |
M36 |
|
S1 |
9 |
11 |
13.5 |
13.5 |
17.5 |
17.5 |
17.5 |
17.5 |
22 |
|
S2 |
9 |
9 |
13.5 |
13.5 |
17.5 |
17.5 |
22 |
22 |
26 |
|
T |
33.3 |
38.3 |
43.3 |
53.8 |
64.4 |
74.9 |
95.4 |
106.4 |
127.4 |
|
t |
28 |
38 |
43 |
53.5 |
64 |
74.5 |
95 |
106 |
127 |
