发布时间：2022-05-18 15:43:19 人气：
|

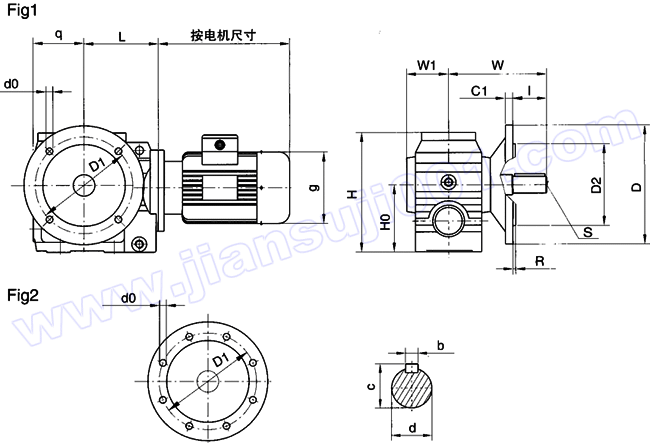

型号 |
安装尺寸 |
轴伸尺寸 |
外形尺寸 | ||||||||||||||||
|
H0 |
D1 |
Fig |
d0 |
D2 |
R |
d |
l |
b |
c |
S |
L |
C1 |
D |
q |
W1 |
W |
h1 |
H | |
|
WSF37 |
82 |
100 |
1 |
6.6 |
80j6 |
3 |
20k6 |
40 |
6 |
22.5 |
M6 |
87 |
8 |
120 |
63 |
57 |
115 |
0 |
143 |
|
130 |
9 |
110j6 |
3.5 |
10 |
160 | ||||||||||||||
|
WSF47 |
100 |
130 |
1 |
9 |
110j6 |
3.5 |
25k6 |
50 |
8 |
28 |
M10 |
110 |
10 |
160 |
75 |
57.5 |
134 |
8 |
179 |
|
WSF57 |
112 |
165 |
1 |
11 |
130j6 |
3.5 |
30k6 |
60 |
8 |
33 |
M10 |
120 |
12 |
200 |
80 |
72 |
160 |
13 |
189 |
|
WSF67 |
140 |
165 |
1 |
11 |
130j6 |
3.5 |
35k6 |
70 |
10 |
38 |
M12 |
138 |
12 |
200 |
105 |
80.5 |
196.5 |
20 |
238 |
|
WSF77 |
180 |
215 |
1 |
13.5 |
180j6 |
4 |
45k6 |
90 |
14 |
48.5 |
M16 |
162 |
15 |
250 |
125 |
121 |
240.5 |
30 |
301 |
|
WSF87 |
225 |
300 |
1 |
17.5 |
250h6 |
5 |
60m6 |
120 |
18 |
64 |
M20 |
196 |
18 |
350 |
150 |
145 |
297.5 |
35 |
368 |
|
WSF97 |
280 |
400 |
2 |
17.5 |
350h6 |
5 |
70m6 |
140 |
20 |
74.5 |
M20 |
233 |
22 |
450 |
180 |
165 |
345 |
50 |
455 |
