发布时间：2022-05-18 15:43:53 人气：
|

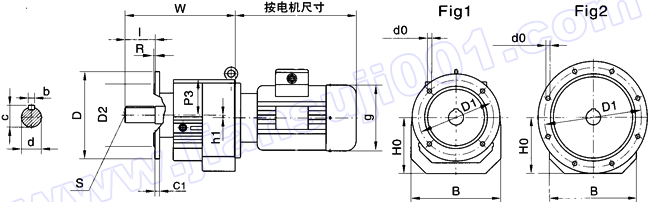

型号 |
安装尺寸 |
轴伸尺寸 |
外形尺寸 | ||||||||||||||
|
D |
Fig |
D1 |
R |
d0 |
D2 |
C1 |
d |
l |
c |
b |
S |
W |
H0 |
B |
P3 |
h1 | |
|
WRF17 |
120 |
1 |
100 |
3 |
6.5 |
80j6 |
8 |
20k6 |
40 |
22.5 |
6 |
M6 |
176 |
76 |
140 |
59 |
0 |
|
140 |
1 |
115 |
3 |
8.5 |
95j6 |
8 | |||||||||||
|
WRF27 |
120 |
1 |
100 |
3 |
6.5 |
110j6 |
8 |
25k6 |
50 |
28 |
8 |
M10 |
197.5 |
92 |
151 |
57 |
8 |
|
140 |
1 |
115 |
3 |
8.5 |
110j6 |
8 | |||||||||||
|
160 |
1 |
130 |
3.5 |
8.5 |
130j6 |
10 | |||||||||||
|
WRF37 |
160 |
1 |
130 |
3.5 |
9 |
110j6 |
10 |
25k6 |
50 |
28 |
8 |
M10 |
201 |
94 |
161 |
61 |
8 |
|
200 |
1 |
165 |
3.5 |
11 |
130j6 |
12 | |||||||||||
|
WRF47 |
160 |
1 |
130 |
3.5 |
9 |
110j6 |
10 |
30k6 |
60 |
33 |
8 |
M10 |
241 |
118 |
181 |
72 |
11.2 |
|
200 |
1 |
165 |
3.5 |
11 |
130j6 |
12 | |||||||||||
|
WRF57 |
160 |
1 |
130 |
3.5 |
9 |
110j6 |
10 |
35k6 |
70 |
38 |
10 |
M12 |
259.5 |
121 |
210 |
72 |
9.7 |
|
200 |
1 |
165 |
3.5 |
11 |
130j6 |
12 | |||||||||||
|
250 |
1 |
215 |
4 |
13.5 |
180j6 |
16 | |||||||||||
|
WRF67 |
200 |
1 |
165 |
3.5 |
11 |
130j6 |
12 |
35k6 |
70 |
38 |
10 |
M12 |
280 |
134 |
215 |
82 |
16.8 |
|
250 |
1 |
215 |
4 |
13.5 |
180j6 |
15 | |||||||||||
|
WRF77 |
250 |
1 |
215 |
4 |
13.5 |
180j6 |
15 |
40k6 |
80 |
43 |
12 |
M16 |
300 |
144 |
244 |
88 |
12.5 |
|
300 |
1 |
265 |
4 |
13.5 |
230j6 |
16 | |||||||||||
|
WRF87 |
300 |
1 |
265 |
4 |
13.5 |
230j6 |
16 |
50k6 |
100 |
53.5 |
14 |
M16 |
372 |
184 |
300 |
115 |
10.8 |
|
350 |
1 |
300 |
5 |
17.5 |
250h6 |
18 | |||||||||||
|
WRF97 |
350 |
1 |
300 |
5 |
17.5 |
250h6 |
18 |
60m6 |
120 |
64 |
18 |
M20 |
440 |
230 |
358 |
144 |
10.3 |
|
450 |
2 |
400 |
5 |
17.5 |
350h6 |
22 | |||||||||||
|
WRF107 |
350 |
1 |
300 |
5 |
17.5 |
250h6 |
20 |
70m6 |
140 |
74.5 |
20 |
M20 |
502 |
255 |
410 |
158 |
19.1 |
|
450 |
2 |
400 |
5 |
17.5 |
350h6 |
22 | |||||||||||
|
WRF137 |
450 |
2 |
400 |
5 |
17.5 |
350h6 |
22 |
90m6 |
170 |
95 |
25 |
M24 |
589 |
320 |
463 |
180 |
20.1 |
|
550 |
2 |
500 |
5 |
17.5 |
450h6 |
25 | |||||||||||
|
WRF147 |
450 |
2 |
400 |
5 |
17.5 |
350h6 |
22 |
110m6 |
210 |
116 |
28 |
M24 |
695 |
358 |
540 |
197 |
17 |
|
550 |
2 |
500 |
5 |
17.5 |
450h6 |
25 | |||||||||||
|
WRF167 |
550 |
2 |
500 |
5 |
17.5 |
450h6 |
25 |
120m6 |
210 |
127 |
32 |
M24 |
790 |
430 |
670 |
150 |
48 |
|
660 |
2 |
600 |
6 |
22 |
550h6 |
28 | |||||||||||
