发布时间：2022-05-18 15:43:54 人气：
|

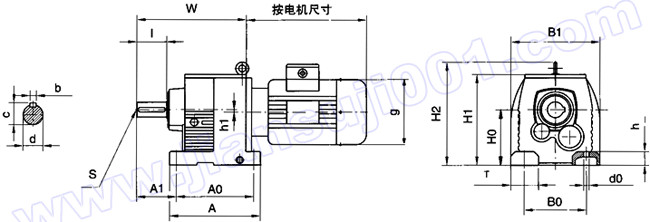

型号 |
安装尺寸 |
轴伸尺寸 |
外形尺寸 | |||||||||||||||
|
H0 |
A0 |
B0 |
A1 |
d0 |
d |
l |
b |
e |
S |
W |
A |
B1 |
H1 |
H2 |
T |
h |
h1 | |
|
WR17 |
75 |
120 |
110 |
58 |
9 |
20k6 |
40 |
6 |
22.5 |
M6 |
176 |
140 |
140 |
134 |
- |
25 |
12 |
0 |
|
WR27 |
90 |
130 |
110 |
75 |
9 |
25k6 |
50 |
8 |
28 |
M10 |
192 |
152 |
151 |
147 |
- |
32 |
18 |
8 |
|
WR37 |
90 |
130 |
110 |
75 |
9 |
25k6 |
50 |
8 |
28 |
M10 |
201 |
160 |
161 |
151 |
- |
35 |
18 |
8 |
|
WR47 |
115 |
165 |
135 |
90 |
13.5 |
30k6 |
60 |
8 |
33 |
M10 |
241 |
195 |
181 |
187 |
- |
42 |
24 |
11.2 |
|
WR57 |
115 |
165 |
135 |
105 |
13.5 |
35k6 |
70 |
10 |
38 |
M12 |
260.5 |
200 |
210 |
187 |
- |
55 |
24 |
9.7 |
|
WR67 |
130 |
195 |
150 |
100 |
14 |
35k6 |
70 |
10 |
38 |
M12 |
280 |
235 |
215 |
212 |
243 |
60 |
30 |
16.8 |
|
WR77 |
140 |
205 |
170 |
115 |
17.5 |
40k6 |
80 |
12 |
43 |
M16 |
300 |
245 |
244 |
230 |
269 |
60 |
30 |
12.5 |
|
WR87 |
180 |
260 |
214 |
140 |
17.5 |
50k6 |
100 |
14 |
53.5 |
M16 |
372 |
310 |
300 |
295 |
345 |
75 |
45 |
10.8 |
|
WR97 |
225 |
310 |
250 |
150 |
22 |
60m6 |
120 |
18 |
64 |
M20 |
440 |
365 |
358 |
368 |
418 |
90 |
55 |
10.3 |
|
WR107 |
250 |
370 |
290 |
185 |
26 |
70m6 |
140 |
20 |
74.5 |
M20 |
502 |
440 |
410 |
408 |
475 |
110 |
65 |
19.1 |
|
WR137 |
315 |
410 |
340 |
220 |
33 |
90m6 |
170 |
25 |
95 |
M24 |
589 |
490 |
463 |
495 |
580 |
110 |
70 |
20.1 |
|
WR147 |
355 |
500 |
380 |
260 |
39 |
110m6 |
210 |
28 |
116 |
M24 |
695 |
590 |
540 |
565 |
635 |
150 |
80 |
17 |
|
WR167 |
425 |
580 |
500 |
270 |
39 |
120m6 |
210 |
32 |
127 |
M24 |
790 |
670 |
670 |
675 |
749 |
160 |
100 |
48 |
