发布时间：2022-05-18 15:50:19 人气：
|

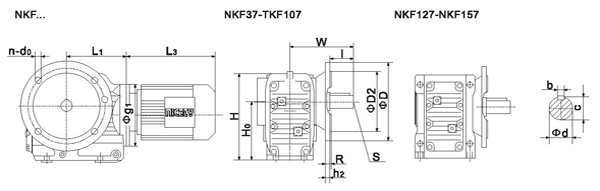

型号 |
安装尺寸 |
轴伸尺寸 |
外形尺寸 | ||||||||||||||
|
Ho |
S |
R |
D1 |
n |
do |
D2 |
b |
d |
I |
c |
L1 |
W |
D |
h1 |
h2 |
H | |
|
NKF37 |
100 |
M10 |
3.5 |
130 |
4 |
9 |
110 |
8 |
25 |
50 |
28 |
139 |
134 |
8.5 |
10 |
10 |
164 |
|
NKF47 |
112 |
M10 |
3.5 |
165 |
4 |
11 |
130 |
8 |
30 |
60 |
33 |
166 |
166 |
7.2 |
10 |
10 |
185 |
|
NKF57 |
132 |
M12 |
4 |
215 |
4 |
13.5 |
180 |
10 |
35 |
70 |
38 |
173 |
177 |
13.1 |
15 |
15 |
215 |
|
NKF67 |
140 |
M16 |
4 |
215 |
4 |
13.5 |
180 |
12 |
40 |
80 |
43 |
179 |
193 |
20 |
15 |
15 |
226 |
|
NKF77 |
180 |
M16 |
4 |
265 |
4 |
13.5 |
230 |
14 |
50 |
100 |
53.5 |
202 |
242 |
31.3 |
16 |
16 |
286 |
|
NKF87 |
212 |
M20 |
5 |
300 |
4 |
17.5 |
250 |
18 |
60 |
120 |
64 |
257 |
270 |
25.9 |
18 |
18 |
338 |
|
NKF97 |
265 |
M20 |
5 |
400 |
8 |
17.5 |
350 |
20 |
70 |
140 |
74.5 |
277 |
332 |
32.3 |
22 |
22 |
414 |
|
NKF107 |
315 |
M24 |
5 |
400 |
8 |
17.5 |
350 |
25 |
90 |
170 |
95 |
341 |
386 |
52 |
22 |
22 |
500 |
|
NKF127 |
375 |
M24 |
5 |
500 |
8 |
17.5 |
450 |
28 |
110 |
210 |
116 |
390 |
466 |
53 |
25 |
25 |
592 |
|
NKF157 |
450 |
M24 |
6 |
600 |
8 |
22 |
550 |
32 |
120 |
210 |
127 |
426 |
520 |
71.7 |
28 |
28 |
705 |
