发布时间：2022-05-18 15:50:21 人气：
|

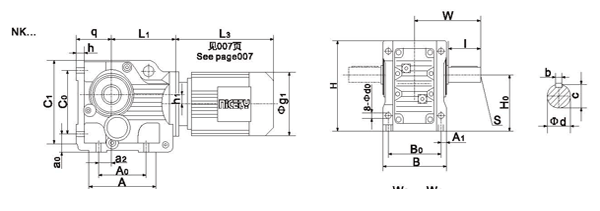

型号 |
安装尺寸 |
轴伸尺寸 |
外形尺寸 | ||||||||||
|
Ho
|
Bo |
Co |
a3 |
A1 |
d(k6) |
I |
S |
b |
B |
L1 |
W |
A | |
|
Ao |
a2 |
q |
do |
c |
H |
h |
h1 |
C1 | |||||
|
NK37 |
100 |
100 |
115 |
32 |
10 |
25 |
50 |
M10 |
8 |
120 |
142 |
110 |
150 |
|
110 |
28 |
63 |
11 |
28 |
165 |
16 |
8.5 |
145 | |||||
|
NK47 |
112 |
120 |
130 |
37 |
15 |
30 |
60 |
M10 |
8 |
145 |
166 |
135 |
165 |
|
130 |
35 |
71 |
11 |
33 |
186 |
18 |
7.2 |
170 | |||||
|
NK57 |
132 |
130 |
150 |
45 |
18 |
35 |
70 |
M12 |
10 |
157 |
173 |
153 |
172 |
|
130 |
30 |
80 |
13.5 |
38 |
217 |
21 |
13.1 |
190 | |||||
|
NK67 |
140 |
140 |
160 |
45 |
21 |
40 |
80 |
M16 |
12 |
170 |
179 |
171 |
175 |
|
120 |
30 |
90 |
13.5 |
43 |
228 |
24 |
20 |
203 | |||||
|
NK77 |
180 |
165 |
200 |
55 |
23.5 |
50 |
100 |
M16 |
14 |
200 |
202 |
206 |
205 |
|
150 |
40 |
112 |
17.5 |
53.5 |
288 |
27 |
31.3 |
263 | |||||
|
NK87 |
212 |
180 |
233 |
70 |
30 |
60 |
120 |
M20 |
18 |
230 |
257 |
240 |
255 |
|
180 |
55 |
132 |
22 |
64 |
340 |
32 |
25.9 |
311 | |||||
|
NK97 |
265 |
240 |
295 |
75 |
31 |
70 |
140 |
M20 |
20 |
290 |
277 |
291 |
320 |
|
240 |
75 |
160 |
26 |
74.5 |
414 |
36 |
32.3 |
372 | |||||
|
NK107 |
315 |
270 |
360 |
95 |
42 |
90 |
170 |
M24 |
25 |
340 |
341 |
347 |
390 |
|
280 |
95 |
200 |
33 |
95 |
505 |
40 |
52 |
455 | |||||
|
NK127 |
375 |
330 |
420 |
110 |
43 |
110 |
210 |
M24 |
28 |
400 |
390 |
418 |
460 |
|
350 |
115 |
225 |
39 |
116 |
592 |
45 |
53 |
526 | |||||
|
NK157 |
450 |
420 |
500 |
130 |
37 |
120 |
210 |
M24 |
32 |
500 |
426 |
457 |
495 |
|
380 |
140 |
280 |
39 |
127 |
705 |
50 |
71.7 |
634 | |||||
