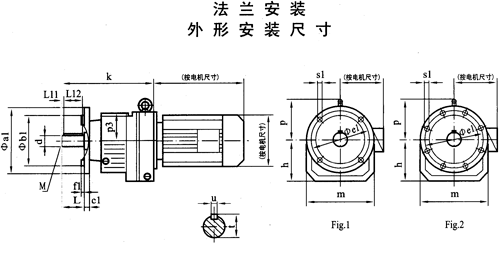

TXR37-TXR167斜齿轮减速电机法兰安装外形安装尺寸
|
型号 |
a1 |
b1 |
e1 |
f1 |
c1 |
L |
L11 |
L12 |
h |
k |
d |
u |
t |
p3 |
p |
m |
Fig |
s1 |
M |
|
TXRF-37 |
120 |
80 |
100 |
3 |
8 |
50 |
3.5 |
40 |
94 |
207 |
25 |
8 |
28 |
61 |
- |
161 |
1 |
6.6 |
M10 |
|
TXRF-47 |
140 |
95 |
115 |
3 |
10 |
60 |
3.5 |
50 |
118 |
235 |
30 |
8 |
33 |
72 |
- |
178 |
1 |
9 |
M10 |
|
TXRF-57 |
160 |
110 |
130 |
3.5 |
10 |
70 |
7 |
56 |
121 |
257 |
35 |
10 |
38 |
72 |
- |
202 |
1 |
9 |
M12 |
|
TXRF-67 |
200 |
130 |
165 |
3.5 |
12 |
70 |
7 |
56 |
134 |
280 |
35 |
10 |
38 |
82 |
113 |
215 |
1 |
13.5 |
M12 |
|
TXRF-77 |
250 |
180 |
215 |
4 |
15 |
80 |
5 |
70 |
144 |
300 |
40 |
12 |
43 |
88 |
129 |
235 |
1 |
13.5 |
M16 |
|
TXRF-87 |
300 |
230 |
265 |
4 |
16 |
100 |
10 |
80 |
184 |
372 |
50 |
14 |
53.5 |
115 |
165 |
297 |
1 |
17.5 |
M16 |
|
TXRF-97 |
350 |
250 |
300 |
5 |
18 |
120 |
5 |
110 |
230 |
440 |
60 |
18 |
64 |
144 |
193 |
348 |
1 |
17.5 |
M20 |
|
TXRF-107 |
350 |
250 |
300 |
5 |
20 |
140 |
7.5 |
125 |
255 |
495 |
70 |
20 |
74.5 |
158 |
224 |
409 |
1 |
17.5 |
M20 |
|
TXRF-137 |
450 |
350 |
400 |
5 |
22 |
170 |
5 |
160 |
320 |
589 |
90 |
25 |
95 |
180 |
247 |
458 |
2 |
17.5 |
M24 |
|
TXRF-147 |
450 |
350 |
400 |
5 |
22 |
210 |
15 |
180 |
361 |
695 |
110 |
28 |
116 |
210 |
285 |
540 |
2 |
17.5 |
M24 |
|
TXRF-167 |
550 |
450 |
500 |
5 |
25 |
210 |
5 |
200 |
430 |
790 |
120 |
32 |
127 |
250 |
324 |
670 |
2 |
17.5 |
M24 |
