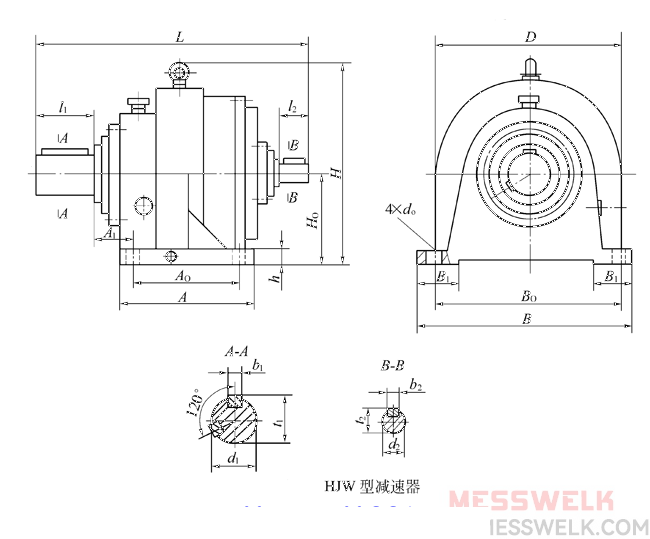

HJW-D型星轮减速机外形及安装尺寸
规格 |
外形尺寸及中心高 |
轴 伸 尺 寸 |
地 脚 尺 寸 |
质量
m/kg | |||||||||||||||||
H0 |
H |
D |
L |
d1
(m6) |
l1 |
b1 |
t1 |
d2 |
l 2 |
b2 |
t2 |
A |
A1 |
A0 |
B |
B1 |
B0 |
d0 |
h | ||
18D |
200 |
475 |
400 |
746 |
100 |
165 |
28 |
106 |
45k6 |
82 |
14 |
48.5 |
320 |
80 |
240 |
480 |
90 |
400 |
26 |
28 |
166 |
20D |
225 |
530 |
450 |
799 |
110 |
165 |
28 |
116 |
50k6 |
82 |
14 |
53.5 |
360 |
90 |
270 |
540 |
100 |
450 |
33 |
35 |
217 |
22D |
250 |
580 |
500 |
879 |
130 |
200 |
32 |
137 |
55k6 |
82 |
16 |
59 |
400 |
100 |
300 |
600 |
115 |
500 |
33 |
35 |
290 |
25D |
280 |
655 |
560 |
923 |
140 |
200 |
36 |
148 |
55k6 |
82 |
16 |
59 |
450 |
110 |
336 |
670 |
125 |
560 |
39 |
45 |
418 |
28D |
315 |
725 |
630 |
1070 |
160 |
240 |
40 |
169 |
65m6 |
105 |
18 |
69 |
500 |
120 |
380 |
750 |
135 |
630 |
50 |
55 |
595 |
31D |
355 |
821 |
710 |
1152 |
180 |
240 |
45 |
190 |
75m6 |
105 |
20 |
79.5 |
560 |
125 |
400 |
840 |
150 |
710 |
50 |
55 |
735 |
35D |
400 |
911 |
800 |
1290 |
200 |
280 |
45 |
210 |
80m6 |
130 |
22 |
85 |
650 |
140 |
480 |
950 |
170 |
800 |
55 |
65 |
1184 |
40D |
450 |
1028 |
900 |
1415 |
220 |
280 |
50 |
231 |
90m6 |
130 |
25 |
95 |
720 |
150 |
540 |
1070 |
190 |
900 |
65 |
75 |
1750 |
45D |
500 |
1570 |
1000 |
1729 |
280 |
380 |
63 |
292 |
120m6 |
165 |
32 |
127 |
800 |
160 |
600 |
1200 |
225 |
1000 |
80 |
100 |
2698 |
50D |
560 |
1305 |
1120 |
1871 |
320 |
380 |
70 |
334 |
130m6 |
200 |
32 |
137 |
870 |
160 |
670 |
1320 |
230 |
1120 |
80 |
100 |
3631 |
56D |
630 |
1480 |
1260 |
2047 |
340 |
450 |
80 |
352 |
140m6 |
200 |
36 |
148 |
1000 |
190 |
750 |
1500 |
270 |
1260 |
80 |
100 |
5178 |
63D |
710 |
1640 |
1420 |
2270 |
380 |
450 |
80 |
395 |
160m6 |
240 |
40 |
169 |
1100 |
200 |
850 |
1670 |
285 |
1420 |
101 |
120 |
7248 |
71D |
800 |
1860 |
1600 |
2535 |
420 |
540 |
90 |
437 |
180m6 |
240 |
45 |
190 |
1250 |
220 |
960 |
1860 |
300 |
1600 |
101 |
120 |
10300 |
80D |
900 |
2060 |
1800 |
2642 |
450 |
540 |
100 |
469 |
200m6 |
280 |
45 |
210 |
1370 |
220 |
1080 |
2090 |
335 |
1800 |
110 |
140 |
13000 |
19D |
215 |
515 |
430 |
804 |
110 |
165 |
28 |
116 |
45k6 |
82 |
14 |
48.5 |
338 |
80 |
258 |
510 |
90 |
430 |
26 |
28 |
203 |
21D |
236 |
580 |
475 |
859 |
120 |
165 |
32 |
127 |
50k6 |
82 |
14 |
53.5 |
372 |
90 |
284 |
560 |
100 |
472 |
33 |
36 |
264 |
23D |
265 |
630 |
530 |
925 |
130 |
200 |
32 |
137 |
55k6 |
82 |
16 |
59 |
418 |
100 |
318 |
630 |
115 |
530 |
39 |
40 |
357 |
26D |
300 |
705 |
600 |
990 |
140 |
200 |
36 |
148 |
55k6 |
82 |
16 |
59 |
470 |
105 |
360 |
710 |
125 |
600 |
50 |
55 |
486 |
30D |
335 |
810 |
670 |
1150 |
170 |
240 |
40 |
179 |
65m6 |
105 |
18 |
69 |
512 |
110 |
400 |
780 |
130 |
670 |
50 |
55 |
730 |
33D |
375 |
890 |
750 |
1285 |
190 |
280 |
45 |
200 |
80m6 |
130 |
22 |
85 |
580 |
120 |
450 |
880 |
150 |
750 |
55 |
65 |
936 |
37D |
425 |
1015 |
850 |
1390 |
220 |
280 |
50 |
231 |
80m6 |
130 |
22 |
85 |
660 |
130 |
510 |
1000 |
170 |
850 |
65 |
75 |
1237 |
42D |
475 |
1105 |
950 |
1600 |
240 |
330 |
56 |
252 |
100m6 |
165 |
28 |
106 |
740 |
140 |
570 |
1120 |
200 |
950 |
80 |
100 |
2007 |
47D |
530 |
1220 |
1060 |
1810 |
300 |
380 |
70 |
314 |
120m6 |
165 |
32 |
127 |
836 |
150 |
636 |
1260 |
230 |
1060 |
80 |
100 |
2793 |
53D |
600 |
1290 |
1200 |
1900 |
320 |
380 |
70 |
334 |
120m6 |
165 |
32 |
127 |
920 |
160 |
720 |
1400 |
240 |
1200 |
80 |
100 |
4114 |
60D |
675 |
1570 |
1350 |
2265 |
380 |
450 |
80 |
395 |
140m6 |
200 |
36 |
148 |
1050 |
180 |
810 |
1590 |
275 |
1350 |
101 |
120 |
6658 |
67D |
750 |
1760 |
1500 |
2531 |
400 |
540 |
90 |
417 |
160m6 |
240 |
40 | ,
169 |
1140 |
190 |
900 |
1740 |
280 |
1500 |
101 |
120 |
9140 |
75D |
850 |
1960 |
1700 |
2635 |
450 |
540 |
100 |
469 |
180m6 |
240 |
45 |
190 |
1280 |
200 |
1020 |
1960 |
300 |
1700 |
110 |
140 |
11540 |
