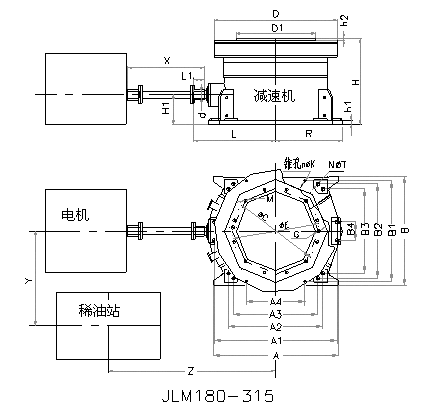

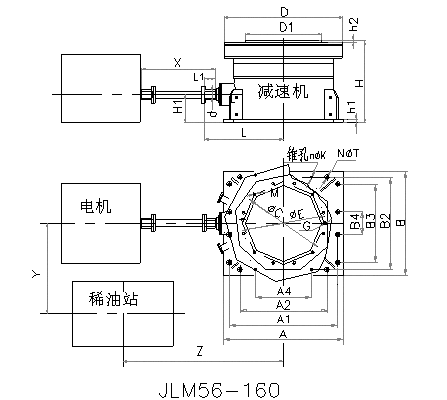

JLM系列立磨减速机外形尺寸
JLM系列立磨减速机外形尺寸
|
序号 |
型号 |
d |
L1 |
L |
H1 |
D |
D1 |
h2 |
H |
h1 |
R |
φC |
M |
φE |
G |
A |
A1 |
|
1 |
JLM63 |
φ75m6 |
140 |
835 |
300 |
φ1150 |
φ500h7 |
12 |
1060 |
50 |
- |
φ620 |
12M36 |
φ620 |
2φ50H7 |
1110 |
990 |
|
2 |
JLM71 |
φ90m6 |
160 |
950 |
320 |
φ1330 |
φ550h7 |
12 |
1120 |
60 |
- |
φ670 |
12M36 |
φ670 |
2φ60H7 |
1240 |
1120 |
|
3 |
JLM80 |
φ100m6 |
180 |
1000 |
400 |
φ1430 |
φ650h7 |
12 |
1290 |
60 |
- |
φ770 |
12M36 |
φ770 |
2φ60H7 |
1370 |
1250 |
|
4 |
JLM90 |
φ100m6 |
180 |
1030 |
400 |
φ1520 |
φ750h7 |
12 |
1310 |
60 |
- |
φ870 |
12M36 |
φ870 |
2φ60H7 |
1430 |
1310 |
|
5 |
JLM100 |
φ100m6 |
180 |
1085 |
450 |
φ1640 |
φ850h7 |
22 |
1410 |
60 |
- |
φ990 |
12M42 |
φ990 |
2φ70H7 |
1550 |
1410 |
|
6 |
JLM112 |
φ110m6 |
200 |
1210 |
500 |
φ1790 |
φ1000h7 |
22 |
1480 |
60 |
- |
φ1140 |
12M42 |
φ1140 |
2φ70H7 |
1700 |
1560 |
|
7 |
JLM125 |
φ120m6 |
250 |
1310 |
500 |
φ1930 |
φ1000h7 |
22 |
1525 |
60 |
- |
φ1140 |
12M42 |
φ1140 |
2φ70H7 |
1780 |
1640 |
|
8 |
JLM140 |
φ130m6 |
250 |
1435 |
560 |
φ2110 |
φ1200h7 |
22 |
1620 |
60 |
- |
φ1340 |
12M42 |
φ1340 |
2φ70H7 |
1980 |
1840 |
|
9 |
JLM160 |
φ150m6 |
260 |
1540 |
600 |
φ2310 |
φ1400h7 |
32 |
1755 |
60 |
- |
φ1560 |
12M48 |
φ1560 |
2φ70H7 |
2180 |
2040 |
|
10 |
JLM180 |
φ150m6 |
260 |
1778 |
510 |
φ2368 |
φ1520h7 |
32 |
1782 |
60 |
1260 |
φ1650 |
12M56×4 |
φ1650 |
2φ70H7 |
2600 |
2300 |
|
11 |
JLM200 |
φ160m6 |
260 |
1945 |
510 |
φ2640 |
φ167h7 |
32 |
1911 |
80 |
1420 |
φ1830 |
12M56×4 |
φ1830 |
2φ70H7 |
2880 |
2580 |
|
12 |
JLM225 |
φ180m6 |
270 |
2168 |
560 |
φ2960 |
φ1900h7 |
42 |
2150 |
80 |
1600 |
φ2060 |
12M56×4 |
φ2060 |
2φ81H7 |
3260 |
2900 |
|
13 |
JLM250 |
φ190m6 |
280 |
2385 |
600 |
φ3280 |
φ2100h7 |
42 |
2270 |
80 |
1710 |
φ2280 |
12M72×4 |
φ2280 |
2φ81H7 |
3480 |
3100 |
|
14 |
JLM280 |
φ210m6 |
300 |
2500 |
650 |
φ3680 |
φ2360h7 |
42 |
2420 |
80 |
1880 |
φ2560 |
12M72×4 |
φ2560 |
2φ81H7 |
3800 |
3400 |
|
15 |
JLM300 |
φ230m6 |
320 |
2780 |
730 |
φ3900 |
φ2530h7 |
42 |
2565 |
80 |
2010 |
φ2740 |
12M72×4 |
φ2740 |
2φ90H7 |
4040 |
3650 |
|
16 |
JLM315 |
φ240m6 |
335 |
2820 |
760 |
φ4100 |
φ2600h7 |
42 |
2718 |
80 |
2100 |
φ2880 |
12M72×4 |
φ2880 |
2φ90H7 |
4200 |
3800 |
|
序号 |
型号 |
A2 |
A3 |
A4 |
B |
B1 |
B2 |
B3 |
B4 |
锥孔
NφK |
NφT |
参考尺寸 |
重量
(l) |
稀油站
(l/min) |
备注 | ||
|
X |
Y |
Z | |||||||||||||||
|
1 |
JLM63 |
790 |
- |
450 |
1050 |
- |
950 |
750 |
400 |
4φ30 |
12φ40(M36) |
800 |
5000 |
2500 |
3.2 |
63 |
二级 |
|
2 |
JLM71 |
920 |
- |
450 |
1180 |
- |
1080 |
880 |
450 |
4φ30 |
12φ40(M36) |
800 |
5000 |
3000 |
4.5 |
125 | |
|
3 |
JLM80 |
1050 |
- |
500 |
1310 |
- |
1210 |
1010 |
450 |
4φ30 |
12φ40(M36) |
800 |
5000 |
3000 |
5.6 |
125 | |
|
4 |
JLM90 |
1110 |
- |
500 |
1370 |
- |
1270 |
1070 |
500 |
4φ30 |
12φ48(M42) |
1000 |
6000 |
3000 |
6.7 |
125 | |
|
5 |
JLM100 |
1150 |
- |
500 |
1470 |
- |
1370 |
1110 |
500 |
4φ30 |
12φ48(M42) |
1000 |
6000 |
3000 |
8.5 |
200 | |
|
6 |
JLM112 |
1310 |
- |
600 |
1620 |
- |
1510 |
1260 |
600 |
4φ30 |
12φ48(M42) |
1000 |
6000 |
3000 |
11 |
200 | |
|
7 |
JLM125 |
1400 |
- |
600 |
1700 |
- |
1590 |
1350 |
600 |
4φ40 |
12φ55(M48) |
1000 |
7000 |
3500 |
13.5 |
200 | |
|
8 |
JLM140 |
1540 |
- |
800 |
1900 |
- |
1790 |
1490 |
700 |
4φ40 |
12φ55(M48) |
1500 |
7000 |
3500 |
18 |
30/250 | |
|
9 |
JLM160 |
1740 |
- |
800 |
2100 |
- |
1990 |
1690 |
800 |
4φ40 |
12φ55(M48) |
1500 |
7000 |
3500 |
22.5 |
30/250 | |
|
10 |
JLM180 |
1800 |
1600 |
1100 |
2080 |
1920 |
1800 |
1600 |
500 |
4φ40 |
12φ80(M72×4) |
1500 |
7000 |
3500 |
29 |
30/250 |
三级 |
|
11 |
JLM200 |
2000 |
1790 |
1240 |
2300 |
2120 |
2000 |
1790 |
530 |
4φ40 |
12φ80(M72×4) |
1500 |
7000 |
3500 |
37.5 |
30/250 | |
|
12 |
JLM225 |
2256 |
2016 |
1400 |
2600 |
2400 |
2256 |
2016 |
600 |
4φ40 |
12φ80(M72×4) |
1840 |
8500 |
4000 |
53 |
80/350 | |
|
13 |
JLM250 |
2500 |
2240 |
1550 |
2860 |
2660 |
2500 |
2240 |
660 |
4φ40 |
12φ88(M80×6) |
1840 |
8500 |
4000 |
65 |
80/350 | |
|
14 |
JLM280 |
2750 |
2460 |
1700 |
3180 |
2900 |
2750 |
2460 |
700 |
4φ40 |
12φ88(M80×6) |
1840 |
8500 |
4000 |
78 |
80/350 | |
|
15 |
JLM300 |
2950 |
2630 |
1800 |
3400 |
3140 |
2950 |
2630 |
780 |
4φ40 |
12φ88(M80×6) |
1840 |
8500 |
4000 |
88 |
80/350 | |
|
16 |
JLM315 |
3080 |
2700 |
1900 |
3560 |
3280 |
3090 |
2760 |
800 |
4φ40 |
12φ88(M80×6) |
1840 |
8500 |
4000 |
99 |
80/350 | |
