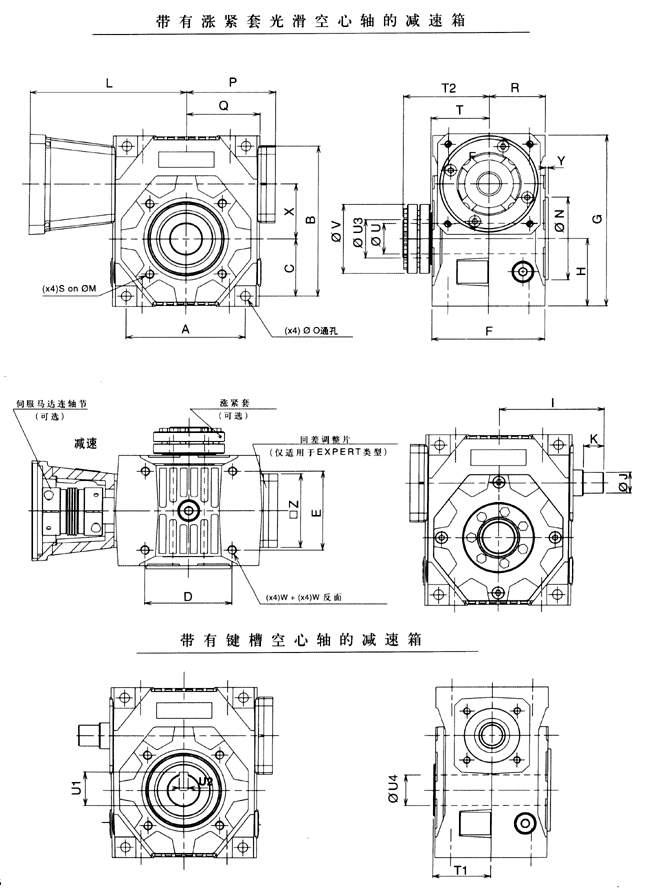

DYNABOX正交精密行星齿轮减速机空心轴型外形及安装尺寸
|
DYNABOX |
35 |
45 |
55 |
65 |
75 |
90 |
100 |
|
A |
86 |
108 |
120 |
134 |
172 |
186 |
220 |
|
B |
110 |
135 |
155 |
173 |
208 |
234 |
276 |
|
C |
44.5 |
53 |
61 |
66 |
82 |
91 |
108 |
|
D |
62 |
81 |
90 |
98 |
136 |
141 |
175 |
|
E |
56 |
68 |
78 |
91 |
110 |
130 |
140 |
|
F |
86 |
100 |
112 |
127 |
148 |
170 |
182 |
|
G |
126 |
153 |
175 |
197 |
232 |
264 |
306 |
|
H |
52.5 |
62 |
71 |
78 |
94 |
106 |
123 |
|
I Maxi |
80 |
97 |
107 |
120 |
145 |
159 |
182 |
|
I mini |
73.5 |
89.5 |
99 |
110 |
134 |
147 |
170 |
|
J(h6) |
12 |
15 |
18 |
20 |
24 |
28 |
32 |
|
K |
17 |
20 |
22 |
24 |
28 |
28 |
36 |
|
M |
65 |
85 |
100 |
115 |
130 |
165 |
200 |
|
N(j7) |
50 |
70 |
80 |
95 |
110 |
130 |
165 |
|
O |
7 |
9 |
9 |
11 |
11 |
13 |
13 |
|
P(Maxi) |
70 |
83.5 |
91 |
101 |
124 |
136.5 |
152 |
|
Q |
55 |
67.5 |
75 |
84 |
104 |
114.5 |
132 |
|
R |
43 |
50 |
56 |
63.5 |
74 |
85 |
91 |
|
S |
M6 |
M8 |
M8 |
M10 |
M10 |
M12 |
M12(×8) |
|
T |
45 |
52 |
58 |
65.5 |
76 |
87 |
93 |
|
T1 |
45 |
52 |
58 |
65.5 |
76 |
87 |
93 |
|
T2 |
69 |
78 |
87 |
96.5 |
110 |
124 |
133 |
|
U(H7h6) |
20 |
25 |
30 |
35 |
40 |
50 |
60 |
|
U4(H7) |
16 |
25 |
30 |
35 |
50 |
50 |
60 |
|
U1 |
18.3 |
28.3 |
33.3 |
38.3 |
43.3 |
53.8 |
64.4 |
|
U2 |
5 |
8 |
8 |
10 |
12 |
14 |
18 |
|
U3 |
24 |
30 |
36 |
44 |
50 |
68 |
80 |
|
V |
50 |
60 |
72 |
80 |
90 |
115 |
138 |
|
W |
M6 |
M8 |
M8 |
M10 |
M10 |
M12 |
M12 |
|
X |
35 |
45 |
55 |
63 |
75 |
90 |
110 |
|
Y |
3 |
3 |
35 |
3.5 |
4 |
4 |
5 |
|
Z |
58 |
75 |
75 |
85 |
95 |
115 |
115 |
|
重量（kg） |
3.4 |
6.2 |
8.5 |
13.9 |
20.5 |
32.5 |
46.5 |
