整体式PWU80、PWU100、PWU125、PWU140、PWU160、PWU180、PWU200、PWU225、PWU250、PWU280、PWU315、PWU355、型平面二次包络环面蜗杆减速机主要尺寸（GB/T16449-1996）
发布时间：2022-05-11 15:08:11 人气：
整体式PWU80-PWU355、型平面二次包络环面蜗杆减速机主要尺寸
|

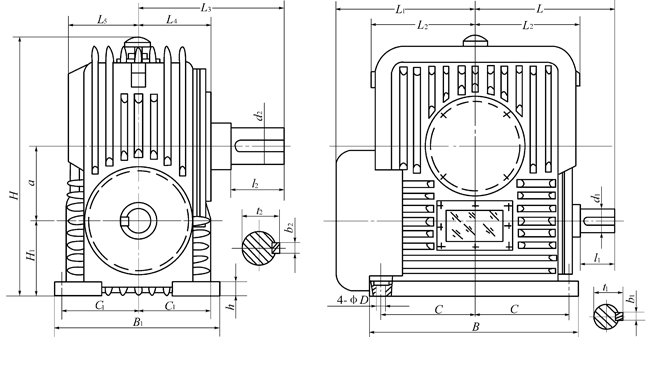

PWU型减速机主要尺寸（整体式） /mm
|
a |
H1 |
B |
B1 |
C |
C1 |
D |
H |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
d1 |
b1 |
t1 |
l1 |
d2 |
b2 |
t2 |
l2 |
h |
|
80 |
100 |
250 |
190 |
112 |
80 |
14 |
315 |
160 |
160 |
125 |
180 |
100 |
90 |
25 |
8 |
28 |
42 |
45 |
14 |
48.5 |
82 |
30 |
|
100 |
112 |
300 |
236 |
130 |
100 |
16 |
355 |
200 |
200 |
160 |
212 |
125 |
118 |
32 |
10 |
35 |
58 |
55 |
16 |
59 |
82 |
35 |
|
125 |
125 |
355 |
280 |
160 |
125 |
18 |
450 |
236 |
236 |
190 |
250 |
150 |
140 |
38 |
10 |
41 |
58 |
65 |
18 |
69 |
105 |
38 |
|
140 |
140 |
400 |
315 |
180 |
140 |
20 |
500 |
265 |
265 |
212 |
280 |
160 |
160 |
42 |
12 |
45 |
82 |
70 |
20 |
74.5 |
105 |
40 |
|
160 |
160 |
450 |
355 |
200 |
160 |
21 |
560 |
300 |
300 |
236 |
315 |
190 |
180 |
48 |
14 |
51.5 |
82 |
80 |
22 |
85 |
130 |
42 |
|
180 |
180 |
500 |
400 |
225 |
180 |
22 |
630 |
335 |
335 |
265 |
355 |
212 |
200 |
56 |
16 |
60 |
82 |
90 |
25 |
95 |
130 |
45 |
|
200 |
200 |
560 |
450 |
250 |
200 |
24 |
710 |
355 |
355 |
300 |
400 |
236 |
224 |
60 |
18 |
64 |
105 |
100 |
28 |
106 |
165 |
50 |
|
225 |
225 |
630 |
500 |
280 |
225 |
26 |
800 |
400 |
400 |
315 |
450 |
265 |
250 |
65 |
18 |
69 |
105 |
110 |
28 |
116 |
165 |
53 |
|
250 |
250 |
670 |
530 |
300 |
250 |
28 |
850 |
450 |
450 |
355 |
500 |
280 |
280 |
70 |
20 |
74.5 |
105 |
125 |
32 |
132 |
165 |
56 |
|
280 |
280 |
800 |
600 |
355 |
280 |
30 |
950 |
475 |
475 |
400 |
560 |
315 |
315 |
85 |
22 |
90 |
130 |
140 |
36 |
148 |
200 |
60 |
|
315 |
315 |
900 |
670 |
375 |
315 |
32 |
1060 |
560 |
560 |
450 |
630 |
355 |
355 |
90 |
25 |
95 |
130 |
150 |
36 |
158 |
200 |
67 |
|
355 |
355 |
1000 |
750 |
425 |
355 |
35 |
1250 |
670 |
670 |
500 |
710 |
400 |
400 |
100 |
28 |
106 |
165 |
170 |
40 |
179 |
240 |
75 | |
|
