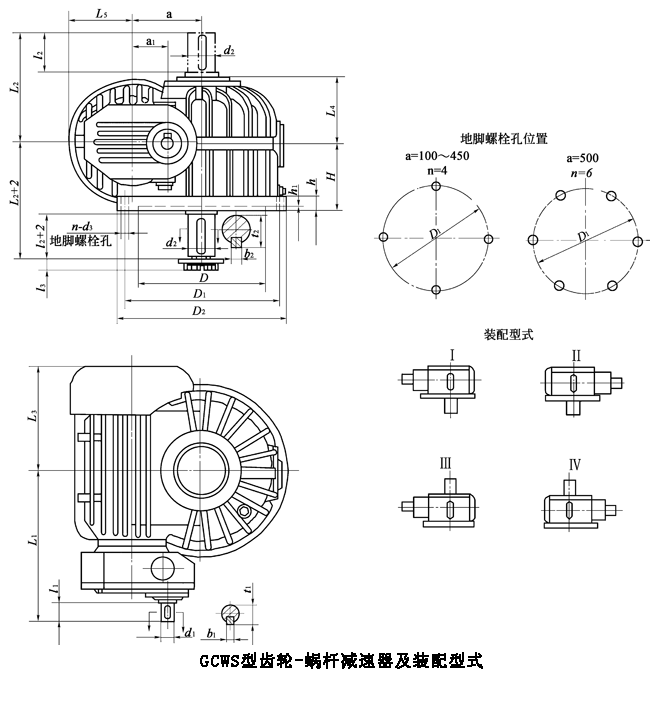

GCWS100-GCWS500型低速级蜗杆在蜗轮之侧的齿轮-蜗杆减速机的装配形式与主要尺寸
|
型号尺寸 |
a |
a1 |
D |
D1 |
D2 |
L3 |
L4 |
L5 |
h |
h1 |
i=35.5～56、100、112 | ||||
|
d1 |
l1 |
b1 |
t1 |
L1 | |||||||||||
|
GCWS100 |
100 |
63 |
190 |
240 |
270 |
180 |
122 |
115 |
28 |
5 |
22j6 |
36 |
6 |
24．5 |
255 |
|
GCWS125 |
125 |
63 |
230 |
280 |
320 |
202 |
134 |
125 |
32 |
8 |
22j6 |
36 |
6 |
24．5 |
273 |
|
GCWS160 |
160 |
80 |
300 |
360 |
400 |
245 |
157 |
142 |
32 |
8 |
28j6 |
42 |
8 |
31 |
329 |
|
GCWS200 |
200 |
100 |
370 |
435 |
480 |
295 |
181 |
180 |
38 |
8 |
42k6 |
82 |
12 |
45 |
443 |
|
GCWS250 |
250 |
125 |
470 |
540 |
600 |
360 |
210 |
210 |
40 |
8 |
48k6 |
82 |
14 |
51．5 |
538 |
|
GCWS315 |
315 |
160 |
605 |
700 |
760 |
430 |
243 |
235 |
50 |
10 |
65m6 |
105 |
18 |
69 |
635 |
|
GCWS355 |
355 |
160 |
700 |
805 |
880 |
480 |
256 |
235 |
55 |
10 |
65m6 |
105 |
18 |
69 |
680 |
|
GCWS400 |
400 |
200 |
765 |
875 |
950 |
515 |
278 |
247 |
60 |
10 |
80m6 |
130 |
22 |
85 |
785 |
|
GCWS450 |
450 |
200 |
875 |
990 |
1070 |
565 |
300 |
275 |
65 |
10 |
80m6 |
130 |
22 |
85 |
838 |
|
GCWS500 |
500 |
250 |
1000 |
1100 |
1180 |
655 |
344 |
300 |
75 |
10 |
100m6 |
165 |
28 |
106 |
995 |
|
型号尺寸 |
i=63～90、125～180 |
i=200～315 |
d2 |
l2 |
b2 |
t2 |
L2 | ||||||||
|
d1 |
l1 |
b1 |
t1 |
L1 |
d1 |
l1 |
b1 |
t1 |
L1 | ||||||
|
GCWS100 |
19j6 |
28 |
6 |
21.5 |
247 |
14j6 |
25 |
5 |
16 |
244 |
48k6 |
82 |
14 |
51.5 |
212 |
|
GCWS125 |
19j6 |
28 |
6 |
21.5 |
265 |
14j6 |
25 |
5 |
16 |
262 |
55m6 |
82 |
16 |
59 |
222 |
|
GCWS160 |
24j6 |
36 |
8 |
27 |
323 |
19j6 |
28 |
6 |
21．5 |
315 |
65m6 |
105 |
18 |
69 |
270 |
|
GCWS200 |
28j6 |
42 |
8 |
31 |
403 |
22j6 |
36 |
6 |
24．5 |
397 |
80m6 |
130 |
22 |
85 |
325 |
|
GCWS250 |
38k6 |
58 |
10 |
41 |
514 |
28j6 |
42 |
8 |
31 |
498 |
100m6 |
165 |
28 |
106 |
385 |
|
GCWS315 |
48k6 |
82 |
14 |
51.5 |
612 |
38k6 |
58 |
10 |
41 |
588 |
120m6 |
165 |
32 |
127 |
420 |
|
GCWS355 |
48k6 |
82 |
14 |
51.5 |
657 |
38k6 |
58 |
10 |
41 |
633 |
130m6 |
200 |
32 |
137 |
470 |
|
GCWS400 |
60m6 |
105 |
18 |
64 |
760 |
48k6 |
82 |
14 |
51．5 |
737 |
150m6 |
200 |
36 |
158 |
490 |
|
GCWS450 |
60m6 |
105 |
18 |
64 |
813 |
48k6 |
82 |
14 |
51．5 |
790 |
170m6 |
240 |
40 |
179 |
560 |
|
GCWS500 |
80m6 |
130 |
22 |
85 |
960 |
60m6 |
105 |
18 |
64 |
935 |
190m6 |
280 |
45 |
200 |
640 |
|
型号尺寸 |
l3 |
H |
d3 |
质量m/kg |
|
GCWS100 |
11 |
132 |
14.5 |
79 |
|
GCWS125 |
14 |
132 |
14.5 |
104 |
|
GCWS160 |
15 |
160 |
18.5 |
162 |
|
GCWS200 |
17 |
190 |
18.5 |
293 |
|
GCWS250 |
17 |
212 |
24 |
440 |
|
GCWS315 |
17 |
250 |
28 |
800 |
|
GCWS355 |
17 |
265 |
35 |
980 |
|
GCWS400 |
24 |
265 |
35 |
1300 |
|
GCWS450 |
24 |
315 |
42 |
1750 |
|
GCWS500 |
24 |
375 |
35 |
2390 |
