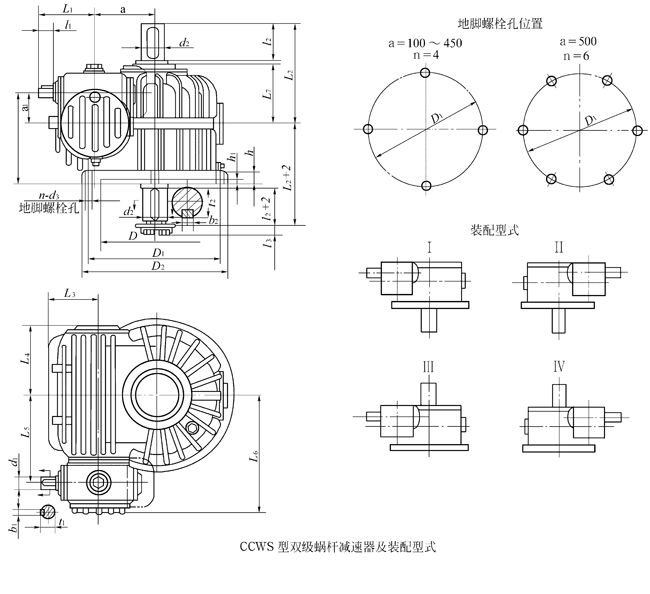

CCWS100-CCWS500、型低速级蜗杆在蜗轮之侧的双级蜗杆减速机的装配形式与主要尺寸
|
型号尺寸 |
a |
a1 |
D |
D1 |
D2 |
L3 |
L4 |
L5 |
L6 |
L7 |
h |
h1 |
i≤400 | ||||
|
d1 |
l1 |
b1 |
t1 |
L1 | |||||||||||||
|
CCWS100 |
100 |
63 |
190 |
240 |
270 |
105 |
133 |
180 |
250 |
122 |
28 |
5 |
19j6 |
28 |
6 |
21.5 |
128 |
|
CCWS125 |
125 |
63 |
230 |
280 |
320 |
115 |
153 |
200 |
270 |
134 |
32 |
8 |
19j6 |
28 |
6 |
21.5 |
128 |
|
CCWS160 |
160 |
80 |
300 |
365 |
400 |
138 |
186 |
235 |
317 |
157 |
32 |
8 |
24j6 |
36 |
8 |
27 |
151 |
|
CCWS200 |
200 |
100 |
370 |
435 |
480 |
165 |
235 |
300 |
400 |
181 |
38 |
8 |
28j6 |
42 |
8 |
31 |
182 |
|
CCWS250 |
250 |
125 |
470 |
540 |
600 |
191 |
285 |
370 |
485 |
210 |
40 |
8 |
32k6 |
58 |
10 |
35 |
218 |
|
CCWS315 |
315 |
160 |
605 |
700 |
760 |
215 |
352 |
455 |
600 |
243 |
50 |
10 |
42k6 |
82 |
12 |
45 |
277 |
|
CCWS355 |
355 |
160 |
700 |
805 |
880 |
217 |
397 |
500 |
645 |
256 |
55 |
10 |
42k6 |
82 |
12 |
45 |
277 |
|
CCWS400 |
400 |
200 |
768 |
875 |
950 |
228 |
429 |
545 |
705 |
278 |
60 |
10 |
48k6 |
82 |
14 |
51.5 |
324 |
|
CCWU450 |
450 |
200 |
875 |
990 |
1070 |
275 |
484 |
597 |
757 |
300 |
65 |
10 |
48k6 |
82 |
14 |
51.5 |
324 |
|
CCWU500 |
500 |
250 |
1000 |
1100 |
1180 |
280 |
549 |
695 |
890 |
344 |
75 |
10 |
55m6 |
82 |
16 |
59 |
380 |
|
型号尺寸 |
i≥500 |
d2 |
l2 |
b2 |
t2 |
L2 |
l3 |
H |
d3 |
质量m/kg | ||||
|
d1 |
l1 |
b1 |
t1 |
L1 | ||||||||||
|
CCWS100 |
19j6 |
28 |
6 |
21.5 |
128 |
48k6 |
82 |
14 |
51.5 |
212 |
11 |
195 |
14．5 |
80 |
|
CCWS125 |
19j6 |
28 |
6 |
21.5 |
128 |
55m6 |
82 |
16 |
59 |
222 |
14 |
195 |
14．5 |
105 |
|
CCWS160 |
24j6 |
36 |
8 |
27 |
151 |
65m6 |
105 |
18 |
69 |
270 |
15 |
240 |
18．5 |
165 |
|
CCWS200 |
24j6 |
36 |
8 |
27 |
176 |
80m6 |
130 |
22 |
85 |
325 |
17 |
290 |
18．5 |
305 |
|
CCWS250 |
28j6 |
42 |
8 |
31 |
202 |
100m6 |
165 |
28 |
106 |
385 |
17 |
337 |
24 |
460 |
|
CCWS315 |
32k6 |
58 |
10 |
35 |
253 |
120m6 |
165 |
32 |
127 |
420 |
17 |
410 |
28 |
830 |
|
CCWS355 |
32k6 |
58 |
10 |
35 |
253 |
130m6 |
200 |
32 |
137 |
470 |
17 |
425 |
35 |
1010 |
|
CCWS400 |
38k6 |
58 |
10 |
41 |
300 |
150m6 |
200 |
36 |
158 |
490 |
24 |
465 |
35 |
1350 |
|
CCWU450 |
38k6 |
58 |
10 |
41 |
300 |
170m6 |
240 |
40 |
179 |
560 |
24 |
515 |
42 |
1800 |
|
CCWU500 |
42k6 |
82 |
12 |
45 |
380 |
190m6 |
280 |
45 |
200 |
640 |
24 |
625 |
35 |
2440 |
