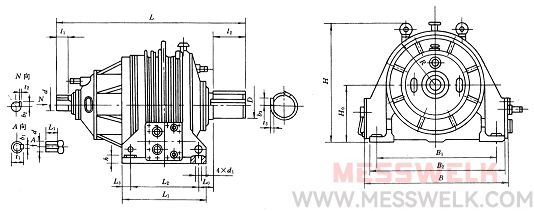

ZZS355~ZZS1800型减速机外形尺寸
型号 |
外形尺寸及中心高 |
轴伸尺寸 |
地脚尺寸 |
质量(kg) | ||||||||||||||||||
L |
B |
H |
H0 |
R |
d |
D |
l1 |
l2 |
t1 |
t3 |
b1 |
b3 |
L0 |
L1 |
L2 |
L3 |
B1 |
B2 |
d1 |
h | ||
ZZS355 |
1266 |
748 |
594 |
280 |
280 |
30 |
140 |
55 |
165 |
33 |
14 |
8 |
42 |
146 |
450 |
350 |
50 |
600 |
700 |
50 |
45 |
648 |
ZZS400 |
1344 |
838 |
676 |
315 |
320 |
35 |
150 |
55 |
180 |
38 |
15 |
10 |
45 |
153 |
520 |
400 |
60 |
675 |
790 |
50 |
55 |
915 |
ZZS450 |
1411 |
912 |
746 |
355 |
350 |
40 |
170 |
55 |
180 |
43 |
17 |
12 |
51 |
169 |
520 |
400 |
60 |
745 |
860 |
50 |
55 |
1155 |
ZZS500 |
1619 |
1042 |
868 |
400 |
405 |
45 |
200 |
70 |
200 |
48.5 |
20 |
14 |
60 |
180 |
580 |
450 |
65 |
860 |
990 |
55 |
65 |
1074 |
ZZS560 |
1773 |
1122 |
992 |
450 |
450 |
50 |
220 |
70 |
240 |
53.5 |
22 |
14 |
66 |
225 |
580 |
480 |
50 |
940 |
1070 |
55 |
65 |
2237 |
ZZS630 |
1969 |
1268 |
1072 |
500 |
495 |
55 |
240 |
85 |
260 |
59 |
24 |
16 |
72 |
228 |
680 |
530 |
75 |
1050 |
1286 |
65 |
75 |
3057 |
ZZS710 |
2140 |
1366 |
1177 |
560 |
545 |
60 |
260 |
85 |
280 |
64 |
26 |
18 |
78 |
258 |
720 |
570 |
75 |
1150 |
1300 |
65 |
75 |
4234 |
ZZS800 |
2317 |
1540 |
1358 |
630 |
600 |
65 |
300 |
105 |
280 |
69 |
30 |
18 |
90 |
263 |
840 |
650 |
95 |
1320 |
1510 |
75 |
90 |
5832 |
ZZS900 |
2384 |
1700 |
1470 |
710 |
665 |
70 |
340 |
105 |
350 |
74.5 |
34 |
20 |
102 |
285 |
980 |
770 |
105 |
1420 |
1630 |
80 |
90 |
7323 |
ZZS1000 |
2842 |
1930 |
1644 |
800 |
755 |
75 |
360 |
105 |
320 |
79.5 |
36 |
20 |
108 |
308 |
1050 |
810 |
120 |
1640 |
1860 |
95 |
110 |
10339 |
ZZS1120 |
3125 |
2204 |
1869 |
900 |
850 |
80 |
400 |
115 |
400 |
85 |
40 |
22 |
120 |
322 |
1130 |
930 |
100 |
1870 |
2120 |
100 |
125 |
74570 |
ZZS1250 |
3458 |
2470 |
2060 |
1000 |
950 |
90 |
450 |
115 |
485 |
95 |
45 |
25 |
135 |
356 |
1330 |
1020 |
155 |
2120 |
2430 |
120 |
150 |
19935 |
ZZS1400 |
3926 |
2706 |
2267 |
1100 |
1035 |
100 |
500 |
125 |
670 |
106 |
50 |
28 |
150 |
372 |
1430 |
1120 |
155 |
2300 |
2610 |
120 |
150 |
25014 |
ZZS1600 |
4335 |
2948 |
2570 |
1250 |
1135 |
110 |
560 |
140 |
750 |
116 |
56 |
28 |
168 |
459 |
1500 |
1180 |
160 |
2540 |
2580 |
145 |
170 |
35571 |
ZZS1800 |
4742 |
3324 |
2742 |
1360 |
1290 |
120 |
630 |
140 |
850 |
127 |
63 |
32 |
189 |
434 |
1720 |
1350 |
185 |
2850 |
3220 |
165 |
200 |
47850 |
