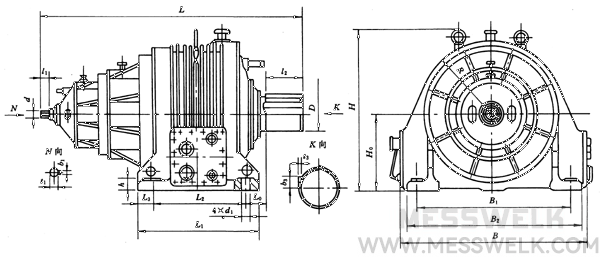

ZZL355~ZZL1800减速机外形尺寸
|
型号 |
外形尺寸及中心高 |
轴伸尺寸 |
地脚尺寸 |
质量(kg) | ||||||||||||||||||||
|
L |
B |
H |
H0 |
R |
d |
D |
lB1 |
l2 |
t1 |
t2 |
t3 |
b1 |
b2 |
b3 |
L0 |
L1 |
L2 |
L3 |
B1 |
B2 |
d1 |
h | ||
|
ZZL355 |
1151 |
784 |
594 |
280 |
280 |
55 |
140 |
85 |
165 |
59 |
- |
14 |
16 |
- |
42 |
146 |
450 |
350 |
50 |
600 |
700 |
50 |
45 |
633 |
|
ZZL400 |
1213 |
838 |
676 |
315 |
320 |
60 |
150 |
85 |
180 |
64 |
- |
15 |
18 |
- |
45 |
153 |
520 |
400 |
60 |
675 |
790 |
50 |
55 |
883 |
|
ZZL450 |
1325 |
912 |
746 |
355 |
350 |
70 |
170 |
105 |
180 |
74.5 |
- |
17 |
20 |
- |
51 |
169 |
520 |
400 |
60 |
745 |
860 |
50 |
55 |
1106 |
|
ZZL500 |
1441 |
1042 |
868 |
400 |
405 |
80 |
200 |
115 |
200 |
85 |
- |
20 |
22 |
- |
60 |
180 |
580 |
450 |
65 |
860 |
990 |
55 |
65 |
1631 |
|
ZZL560 |
1599 |
1122 |
992 |
450 |
450 |
90 |
220 |
115 |
240 |
95 |
- |
22 |
25 |
- |
66 |
225 |
580 |
480 |
50 |
940 |
1070 |
55 |
65 |
2137 |
|
ZZL630 |
1767 |
1268 |
1072 |
500 |
495 |
100 |
240 |
125 |
260 |
106 |
- |
24 |
28 |
- |
72 |
228 |
680 |
530 |
75 |
1050 |
1286 |
65 |
75 |
2914 |
|
ZZL710 |
1947 |
1366 |
1177 |
560 |
545 |
110 |
260 |
140 |
280 |
116 |
- |
26 |
28 |
- |
78 |
258 |
720 |
570 |
75 |
1150 |
1300 |
65 |
75 |
4037 |
|
ZZL800 |
2099 |
1540 |
1358 |
630 |
600 |
120 |
300 |
140 |
280 |
127 |
- |
30 |
32 |
- |
90 |
263 |
840 |
650 |
95 |
1320 |
1510 |
75 |
90 |
5562 |
|
ZZL900 |
2208 |
1700 |
1470 |
710 |
665 |
130 |
340 |
160 |
350 |
137 |
- |
34 |
32 |
- |
102 |
285 |
980 |
770 |
105 |
1420 |
1630 |
80 |
100 |
7339 |
|
ZZL1000 |
2584 |
1930 |
1644 |
800 |
755 |
140 |
360 |
180 |
320 |
- |
14 |
36 |
- |
42 |
108 |
308 |
1050 |
810 |
120 |
1640 |
1860 |
95 |
110 |
9732 |
|
ZZL1120 |
2774 |
2204 |
1869 |
900 |
850 |
160 |
400 |
180 |
400 |
- |
16 |
40 |
- |
48 |
120 |
322 |
1130 |
930 |
100 |
1870 |
2120 |
100 |
125 |
14165 |
|
ZZL1250 |
3115 |
2470 |
2060 |
1000 |
950 |
170 |
450 |
200 |
485 |
- |
17 |
45 |
- |
51 |
135 |
356 |
1330 |
1020 |
155 |
2120 |
2430 |
120 |
150 |
18862 |
|
ZZL1400 |
3586 |
2708 |
2267 |
1100 |
1035 |
200 |
500 |
240 |
670 |
- |
20 |
50 |
- |
60 |
150 |
372 |
1430 |
1120 |
155 |
2300 |
2610 |
120 |
150 |
25122 |
|
ZZL1600 |
3952 |
2941 |
2570 |
1250 |
1135 |
220 |
560 |
240 |
750 |
- |
22 |
56 |
- |
66 |
168 |
459 |
1500 |
1160 |
160 |
2540 |
2580 |
145 |
170 |
33488 |
|
ZZL1800 |
4314 |
3324 |
2742 |
1360 |
1290 |
240 |
630 |
260 |
850 |
- |
24 |
63 |
- |
72 |
189 |
454 |
1720 |
1350 |
185 |
2850 |
3220 |
165 |
200 |
45051 |
