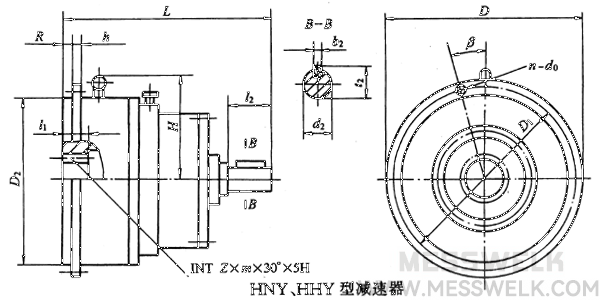

HNY、HHY-B型星轮减速机外形及安装尺寸
|
规格 |
外形尺寸 |
孔输出参数及轴伸尺寸 |
安 装 联 接 尺 寸 |
质量
m/kg | ||||||||||||||
|
L |
H |
Z |
m |
l 1 |
d2 |
l 2 |
b2 |
t2 |
D |
D1 |
D2
（h9） |
R |
n |
d0 |
β/
（。） |
h | ||
|
18B |
473 |
240 |
38 |
2 |
28 |
28j6 |
42 |
8 |
31 |
400 |
380 |
360 |
5 |
12 |
13.5 |
15 |
24 |
102 |
|
20B |
511 |
270 |
30 |
3 |
30 |
30k6 |
58 |
8 |
33 |
450 |
425 |
400 |
5 |
12 |
13.5 |
15 |
26 |
132 |
|
22B |
526 |
300 |
38 |
3 |
35 |
30k6 |
58 |
8 |
33 |
500 |
470 |
450 |
6 |
12 |
13.5 |
15 |
26 |
165 |
|
25B |
596 |
340 |
24 |
5 |
40 |
35k6 |
58 |
10 |
38 |
560 |
525 |
500 |
6 |
16 |
13.5 |
11.25 |
30 |
227 |
|
28B |
677 |
365 |
28 |
5 |
50 |
40k6 |
82 |
12 |
43 |
630 |
600 |
560 |
8 |
16 |
17.5 |
11.25 |
35 |
350 |
|
31B |
717 |
405 |
34 |
5 |
55 |
40k6 |
82 |
12 |
43 |
710 |
670 |
630 |
10 |
16 |
17.5 |
11.25 |
40 |
390 |
|
35B |
765 |
470 |
38 |
5 |
60 |
45k6 |
82 |
14 |
48.5 |
800 |
750 |
710 |
10 |
16 |
22 |
11.25 |
45 |
560 |
|
40B |
838 |
515 |
20 |
10 |
65 |
50k6 |
82 |
14 |
53.5 |
900 |
850 |
800 |
10 |
16 |
26 |
11.25 |
50 |
881 |
|
45B |
955 |
590 |
22 |
10 |
70 |
60m6 |
105 |
18 |
64 |
1000 |
950 |
900 |
10 |
16 |
26 |
11.25 |
55 |
1385 |
|
50B |
984 |
630 |
25 |
10 |
75 |
60m6 |
105 |
18 |
64 |
1120 |
1060 |
1000 |
10 |
16 |
33 |
11.25 |
60 |
1760 |
|
56B |
1089 |
690 |
26 |
10 |
80 |
65m6 |
105 |
18 |
69 |
1260 |
1190 |
1120 |
10 |
16 |
33 |
11.25 |
65 |
2511 |
|
19B |
483 |
250 |
30 |
3 |
28 |
28j6 |
42 |
8 |
31 |
430 |
400 |
380 |
5 |
12 |
11 |
15 |
24 |
105 |
|
21B |
502 |
285 |
33 |
3 |
30 |
28j6 |
42 |
8 |
31 |
475 |
450 |
430 |
5 |
12 |
11 |
15 |
26 |
135 |
|
23B |
550 |
315 |
38 |
3 |
35 |
30k6 |
58 |
8 |
33 |
530 |
500 |
475 |
6 |
16 |
13.5 |
11.25 |
26 |
183 |
|
26B |
590 |
355 |
26 |
5 |
40 |
30k6 |
58 |
8 |
33 |
600 |
565 |
530 |
6 |
16 |
17.5 |
11.25 |
30 |
238 |
|
30B |
687 |
385 |
30 |
5 |
45 |
40k6 |
82 |
12 |
43 |
670 |
630 |
600 |
8 |
16 |
17.5 |
11.25 |
35 |
357 |
|
33B |
730 |
425 |
34 |
5 |
55 |
40k6 |
82 |
12 |
43 |
750 |
710 |
670 |
10 |
16 |
22 |
11.25 |
40 |
464 |
|
37B |
789 |
495 |
38 |
5 |
60 |
45k6 |
82 |
14 |
48.5 |
850 |
800 |
750 |
10 |
16 |
26 |
11.25 |
45 |
690 |
|
42B |
847 |
540 |
20 |
10 |
65 |
50k6 |
82 |
14 |
53.5 |
950 |
900 |
850 |
10 |
16 |
26 |
11.25 |
50 |
975 |
|
47B |
948 |
615 |
22 |
10 |
70 |
55k6 |
82 |
16 |
59 |
1060 |
1000 |
950 |
10 |
16 |
26 |
11.25 |
55 |
1403 |
|
53B |
974 |
660 |
25 |
10 |
75 |
55k6 |
82 |
16 |
59 |
1200 |
1135 |
1060 |
10 |
16 |
33 |
11.25 |
60 |
2020 |
