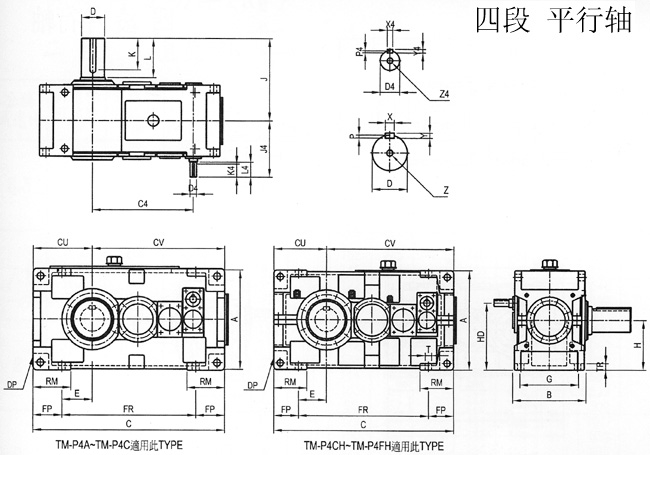

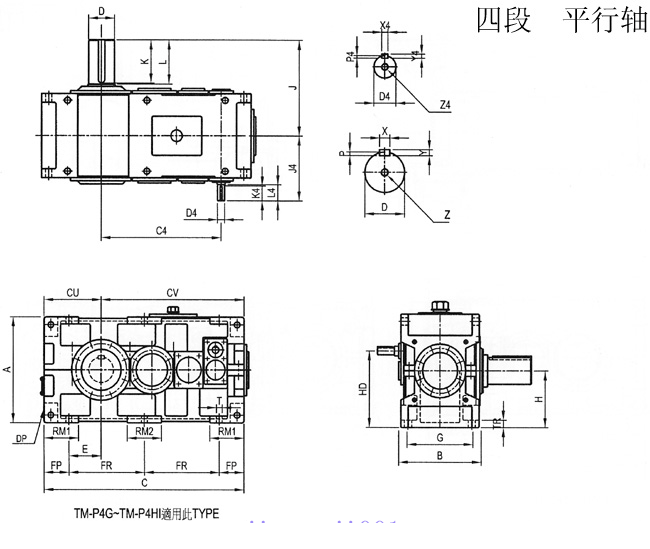

TM系列齿轮减速机四段平行轴外形及安装尺寸
|
型号 |
A |
B |
C |
C4 |
CU |
CV |
E |
FP |
FR |
G |
H |
HD |
J |
J4 |
RM |
T |
TR |
DP |
|
TM-P4A |
320 |
265 |
640 |
343 |
200 |
440 |
110 |
90 |
460 |
215 |
160 |
223 |
330 |
219 |
120 |
24 |
28 |
3/4" |
|
TM-P4AB |
370 |
265 |
690 |
374 |
219 |
471 |
129 |
90 |
510 |
215 |
185 |
248 |
330 |
219 |
120 |
24 |
28 |
3/4" |
|
TM-P4B |
400 |
315 |
759 |
398 |
235 |
524 |
120 |
115 |
529 |
255 |
200 |
279 |
349 |
235 |
150 |
28 |
30 |
3/4" |
|
TM-P4C |
420 |
345 |
848 |
467 |
255 |
593 |
138.5 |
116.5 |
615 |
285 |
210 |
289 |
411 |
275 |
150 |
28 |
32 |
1" |
|
TM-P4CD |
490 |
345 |
918 |
506 |
286 |
632 |
171 |
115 |
688 |
285 |
245 |
324 |
411 |
275 |
150 |
28 |
32 |
1" |
|
TM-P4D |
530 |
380 |
970 |
540 |
291 |
679 |
151 |
135 |
700 |
310 |
265 |
357 |
440 |
301 |
180 |
35 |
35 |
1" |
|
TM-P4E |
600 |
430 |
1115 |
630 |
328 |
787 |
163 |
160 |
795 |
350 |
300 |
409 |
509 |
354 |
215 |
42 |
40 |
1" |
|
TM-P4EF |
670 |
430 |
1215 |
683 |
375 |
840 |
210 |
160 |
895 |
350 |
335 |
444 |
562 |
354 |
220 |
42 |
52 |
1" |
|
TM-P4F |
670 |
460 |
1275 |
725 |
370 |
905 |
205 |
160 |
955 |
380 |
335 |
461 |
582 |
374 |
220 |
42 |
52 |
1" |
|
TM-P4FG |
750 |
460 |
1375 |
781 |
414 |
961 |
249 |
160 |
1055 |
380 |
375 |
501 |
585 |
374 |
220 |
42 |
52 |
1" |
|
型号 |
D |
L |
K |
X |
Y |
P |
Z |
D4 |
L4 |
K4 |
X4 |
Y4 |
P4 |
Z4 |
重量KG |
油量L |
|
TM-P4A |
80m6 |
170 |
150 |
22 |
14 |
9 |
M16 |
25k6 |
60 |
50 |
8 |
7 |
4 |
M8 |
230 |
16 |
|
TM-P4AB |
90m6 |
170 |
150 |
25 |
14 |
9 |
M16 |
25k6 |
60 |
50 |
8 |
7 |
4 |
M8 |
250 |
21 |
|
TM-P4B |
95m6 |
170 |
150 |
25 |
14 |
9 |
M16 |
28k6 |
60 |
50 |
8 |
7 |
4 |
M8 |
330 |
27 |
|
TM-P4C |
110m6 |
210 |
190 |
28 |
16 |
10 |
M16 |
30k6 |
80 |
70 |
8 |
7 |
4 |
M10 |
470 |
34 |
|
TM-P4CD |
120m6 |
210 |
185 |
32 |
18 |
11 |
M16 |
30k6 |
80 |
70 |
8 |
7 |
4 |
M10 |
530 |
42 |
|
TM-P4D |
125m6 |
20 |
185 |
32 |
18 |
11 |
M16 |
35k6 |
80 |
70 |
10 |
8 |
5 |
M10 |
690 |
41 |
|
TM-P4E |
145m6 |
250 |
225 |
36 |
20 |
12 |
M20 |
40k6 |
110 |
95 |
12 |
8 |
5 |
M10 |
970 |
60 |
|
TM-P4EF |
160m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
40k6 |
110 |
95 |
12 |
8 |
5 |
M10 |
1190 |
71 |
|
TM-P4F |
165m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
45k6 |
110 |
95 |
14 |
9 |
5.5 |
M10 |
1380 |
75 |
|
TM-P4FG |
175m6 |
300 |
270 |
45 |
25 |
15 |
M20 |
45k6 |
110 |
95 |
14 |
9 |
5.5 |
M10 |
1640 |
93 |
|
型号 |
A |
B |
C |
C4 |
CU |
CV |
E |
FP |
FR |
G |
H |
HD |
J |
J4 |
RM1 |
RM2 |
T |
TR |
DP |
|
TM-P4G |
750 |
570 |
1460 |
837 |
415 |
1045 |
235 |
180 |
550 |
480 |
375 |
517 |
650 |
440 |
250 |
250 |
42 |
50 |
1" |
|
TM-P4H |
800 |
570 |
1530 |
867 |
450 |
1080 |
255 |
195 |
570 |
480 |
400 |
542 |
700 |
440 |
270 |
250 |
42 |
50 |
1" |
|
TM-P4HI |
850 |
650 |
1610 |
950 |
444 |
1166 |
219 |
225 |
580 |
560 |
425 |
587 |
740 |
515 |
300 |
250 |
48 |
55 |
1" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
型号 |
D |
L |
K |
X |
Y |
P |
Z |
D4 |
L4 |
K4 |
X4 |
Y4 |
P4 |
Z4 |
重量KG |
油量L |
|
TM-P4G |
180m6 |
300 |
275 |
45 |
25 |
15 |
M20 |
50m6 |
110 |
95 |
14 |
9 |
5.5 |
M10 |
2100 |
150 |
|
TM-P4H |
190m6 |
350 |
320 |
45 |
25 |
15 |
M20 |
50m6 |
110 |
95 |
14 |
9 |
5.5 |
M10 |
2400 |
180 |
|
TM-P4HI |
200m6 |
350 |
320 |
45 |
25 |
15 |
M20 |
60m6 |
140 |
125 |
18 |
11 |
7 |
M10 |
2830 |
220 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
