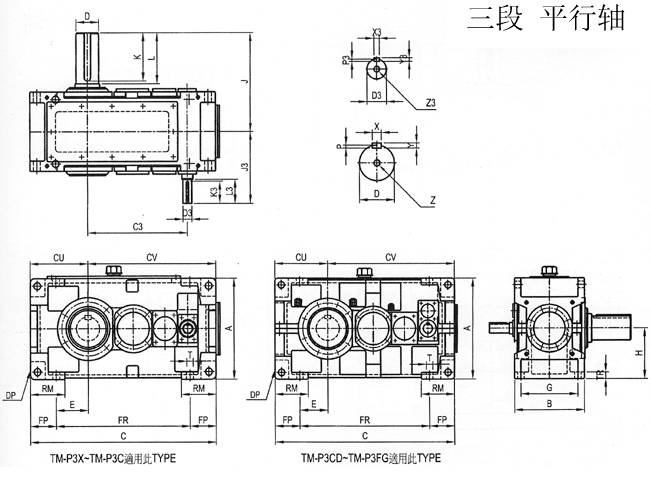

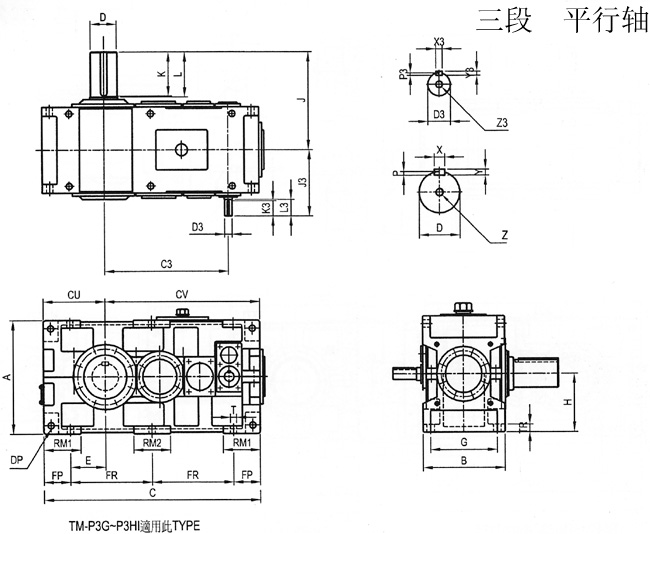

TM系列齿轮减速机三段平行轴外形及安装尺寸
|
型号 |
A |
B |
C |
C3 |
CU |
CV |
E |
FP |
FR |
G |
H |
J |
J3 |
RM |
T |
TR |
DP |
|
TM-P3X |
270 |
205 |
485 |
257 |
160 |
325 |
90 |
70 |
345 |
170 |
135 |
245 |
190 |
95 |
15 |
22 |
3/4" |
|
TM-P3Y |
310 |
235 |
570 |
306 |
175 |
395 |
95 |
80 |
410 |
195 |
155 |
285 |
204 |
110 |
19 |
25 |
3/4" |
|
TM-P3A |
320 |
265 |
640 |
343 |
200 |
440 |
110 |
90 |
460 |
215 |
160 |
330 |
241 |
120 |
24 |
28 |
3/4" |
|
TM-P3AB |
370 |
265 |
690 |
374 |
219 |
471 |
129 |
90 |
510 |
215 |
185 |
330 |
241 |
120 |
24 |
28 |
3/4" |
|
TM-P3B |
400 |
315 |
759 |
398 |
235 |
524 |
120 |
115 |
529 |
255 |
200 |
349 |
256 |
150 |
28 |
30 |
3/4" |
|
TM-P3C |
420 |
345 |
848 |
467 |
255 |
593 |
138.5 |
116.5 |
615 |
285 |
210 |
411 |
304 |
150 |
28 |
32 |
1" |
|
TM-P3CD |
490 |
345 |
918 |
506 |
286 |
632 |
171 |
115 |
688 |
285 |
245 |
411 |
304 |
150 |
28 |
32 |
1" |
|
TM-P3D |
530 |
380 |
970 |
540 |
291 |
679 |
151 |
135 |
700 |
310 |
265 |
440 |
329 |
180 |
35 |
35 |
1" |
|
TM-P3E |
600 |
430 |
1115 |
630 |
328 |
787 |
163 |
160 |
795 |
350 |
300 |
509 |
354 |
215 |
42 |
40 |
1" |
|
TM-P3EF |
670 |
430 |
1215 |
683 |
375 |
840 |
210 |
160 |
895 |
350 |
335 |
562 |
354 |
220 |
42 |
52 |
1" |
|
TM-P3F |
670 |
460 |
1275 |
725 |
370 |
905 |
205 |
160 |
955 |
380 |
335 |
582 |
405 |
220 |
42 |
52 |
1" |
|
TM-P3FG |
750 |
460 |
1375 |
781 |
414 |
961 |
249 |
160 |
1055 |
380 |
375 |
585 |
405 |
220 |
42 |
52 |
1" |
|
型号 |
D |
L |
K |
X |
Y |
P |
Z |
D3 |
L3 |
K3 |
X3 |
Y3 |
P3 |
Z3 |
重量KG |
油量L |
|
TM-P3X |
58m6 |
110 |
95 |
18 |
11 |
7 |
M10 |
25k6 |
60 |
50 |
8 |
7 |
4 |
M8 |
110 |
6 |
|
TM-P3Y |
70m6 |
140 |
125 |
20 |
12 |
7.5 |
M12 |
28k6 |
60 |
50 |
8 |
7 |
4 |
M8 |
160 |
9 |
|
TM-P3A |
80m6 |
170 |
150 |
22 |
14 |
9 |
M16 |
30k6 |
80 |
70 |
8 |
7 |
4 |
M10 |
220 |
12 |
|
TM-P3AB |
90m6 |
170 |
150 |
25 |
14 |
9 |
M16 |
30k6 |
80 |
70 |
8 |
7 |
4 |
M10 |
240 |
16 |
|
TM-P3B |
95m6 |
170 |
150 |
25 |
14 |
9 |
M16 |
35k6 |
80 |
70 |
10 |
8 |
5 |
M10 |
320 |
21 |
|
TM-P3C |
110m6 |
210 |
190 |
28 |
16 |
10 |
M16 |
40k6 |
110 |
95 |
12 |
8 |
5 |
M10 |
460 |
26 |
|
TM-P3CD |
120m6 |
210 |
185 |
32 |
18 |
11 |
M16 |
40k6 |
110 |
95 |
12 |
8 |
5 |
M10 |
520 |
31 |
|
TM-P3D |
125m6 |
210 |
185 |
32 |
18 |
11 |
M16 |
50k6 |
110 |
95 |
14 |
9 |
5.5 |
M10 |
680 |
36 |
|
TM-P3E |
145m6 |
250 |
225 |
36 |
20 |
12 |
M20 |
55m6 |
110 |
95 |
16 |
10 |
6 |
M10 |
960 |
55 |
|
TM-P3EF |
160m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
55m6 |
110 |
95 |
16 |
10 |
6 |
M10 |
1180 |
66 |
|
TM-P3F |
165m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
65m6 |
140 |
125 |
18 |
11 |
7 |
M12 |
1370 |
70 |
|
TM-P3FG |
175m6 |
300 |
270 |
45 |
25 |
15 |
M20 |
65m6 |
140 |
125 |
18 |
11 |
7 |
M12 |
1630 |
85 |
|
型号 |
A |
B |
C |
C3 |
CU |
CV |
E |
FP |
FR |
G |
H |
J |
J3 |
RM1 |
RM2 |
T |
TR |
DP |
|
TM-P3G |
750 |
570 |
1460 |
837 |
415 |
1045 |
235 |
180 |
550 |
480 |
375 |
650 |
470 |
250 |
250 |
42 |
50 |
1" |
|
TM-P3H |
800 |
570 |
1530 |
867 |
450 |
1080 |
255 |
195 |
570 |
480 |
400 |
700 |
470 |
270 |
250 |
42 |
50 |
1" |
|
TM-P3HI |
850 |
650 |
1610 |
950 |
444 |
1166 |
219 |
225 |
570 |
560 |
425 |
740 |
515 |
300 |
250 |
48 |
55 |
1" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
型号 |
D |
L |
K |
X |
Y |
P |
Z |
D3 |
L3 |
K3 |
X3 |
Y3 |
P3 |
Z3 |
重量KG |
油量L |
|
TM-P3G |
180m6 |
300 |
275 |
45 |
25 |
15 |
M20 |
65m6 |
140 |
125 |
18 |
11 |
7 |
M12 |
2100 |
125 |
|
TM-P3H |
190m6 |
350 |
320 |
45 |
25 |
15 |
M20 |
65m6 |
140 |
125 |
18 |
11 |
7 |
M12 |
2350 |
160 |
|
TM-P3HI |
200m6 |
350 |
320 |
45 |
25 |
15 |
M20 |
75m6 |
140 |
125 |
20 |
12 |
7.5 |
M12 |
2780 |
180 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
