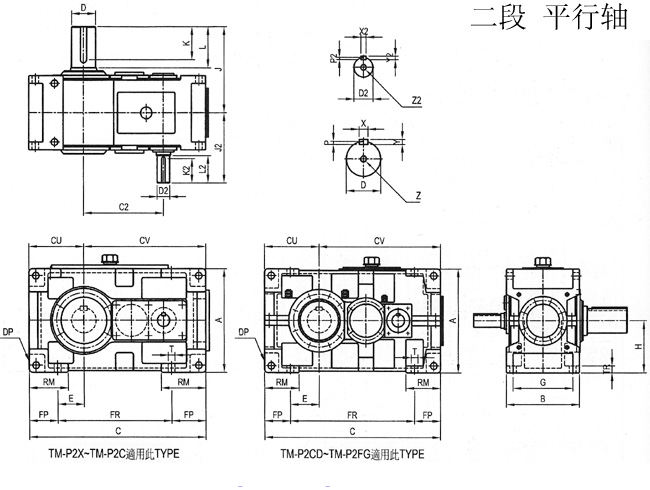

TM系列齿轮减速机二段平行轴外形及安装尺寸
|
型号 |
A |
B |
C |
C2 |
CU |
CV |
E |
FP |
FR |
G |
H |
J |
J2 |
RM |
T |
TR |
DP |
|
TM-P2X |
270 |
205 |
440 |
194 |
160 |
280 |
90 |
70 |
300 |
170 |
135 |
245 |
211 |
95 |
15 |
22 |
3/4" |
|
TM-P2Y |
310 |
235 |
505 |
227 |
175 |
330 |
95 |
80 |
345 |
195 |
155 |
285 |
225 |
110 |
19 |
25 |
3/4" |
|
TM-P2A |
320 |
265 |
590 |
264 |
200 |
390 |
110 |
90 |
410 |
215 |
160 |
330 |
269 |
120 |
24 |
28 |
3/4" |
|
TM-P2AB |
370 |
265 |
640 |
295 |
219 |
421 |
129 |
90 |
460 |
215 |
185 |
330 |
269 |
120 |
24 |
28 |
3/4" |
|
TM-P2B |
400 |
315 |
685 |
306 |
235 |
450 |
120 |
115 |
455 |
255 |
200 |
349 |
284 |
150 |
28 |
30 |
3/4" |
|
TM-P2C |
420 |
345 |
775 |
358 |
255 |
520 |
138.5 |
116.5 |
542 |
285 |
210 |
411 |
303 |
150 |
28 |
32 |
1" |
|
TM-P2CD |
490 |
345 |
845 |
397 |
286 |
559 |
171 |
115 |
615 |
285 |
245 |
411 |
303 |
150 |
28 |
32 |
1" |
|
TM-P2D |
530 |
380 |
885 |
414 |
291 |
594 |
151 |
135 |
615 |
310 |
265 |
440 |
360 |
180 |
35 |
35 |
1" |
|
TM-P2E |
600 |
430 |
1020 |
482 |
328 |
692 |
163 |
160 |
700 |
350 |
300 |
509 |
385 |
215 |
42 |
40 |
1" |
|
TM-P2EF |
670 |
430 |
1120 |
535 |
375 |
745 |
210 |
160 |
800 |
350 |
335 |
562 |
385 |
220 |
42 |
52 |
1" |
|
TM-P2F |
670 |
460 |
1155 |
556 |
370 |
785 |
205 |
160 |
835 |
380 |
335 |
582 |
434 |
220 |
42 |
52 |
1" |
|
TM-P2FG |
750 |
460 |
1255 |
612 |
414 |
841 |
249 |
160 |
935 |
380 |
375 |
585 |
434 |
220 |
42 |
52 |
1" |
|
型号 |
D |
L |
K |
X |
Y |
P |
Z |
D2 |
L2 |
K2 |
X2 |
Y2 |
P2 |
Z2 |
重量KG |
油量L |
|
TM-P2X |
58m6 |
110 |
95 |
18 |
11 |
7 |
M10 |
30k6 |
80 |
70 |
8 |
7 |
4 |
M10 |
105 |
6 |
|
TM-P2Y |
70m6 |
140 |
125 |
20 |
12 |
7.5 |
M12 |
35k6 |
80 |
70 |
10 |
8 |
5 |
M10 |
145 |
8 |
|
TM-P2A |
80m6 |
170 |
150 |
22 |
14 |
9 |
M16 |
40k6 |
110 |
95 |
12 |
8 |
5 |
M10 |
200 |
11 |
|
TM-P2AB |
90m6 |
170 |
150 |
25 |
14 |
9 |
M16 |
40k6 |
110 |
95 |
12 |
8 |
5 |
M10 |
220 |
13 |
|
TM-P2B |
95m6 |
170 |
150 |
25 |
14 |
9 |
M16 |
50k6 |
110 |
95 |
14 |
9 |
5.5 |
M10 |
290 |
17 |
|
TM-P2C |
110m6 |
210 |
190 |
28 |
16 |
10 |
M16 |
55m6 |
110 |
95 |
16 |
10 |
6 |
M10 |
420 |
22 |
|
TM-P2CD |
120m6 |
210 |
185 |
32 |
18 |
11 |
M16 |
55m6 |
110 |
95 |
16 |
10 |
6 |
M10 |
480 |
29 |
|
TM-P2D |
125m6 |
210 |
185 |
32 |
18 |
11 |
M16 |
65m6 |
140 |
125 |
18 |
11 |
7 |
M12 |
615 |
32 |
|
TM-P2E |
145m6 |
250 |
225 |
36 |
20 |
12 |
M20 |
75m6 |
140 |
125 |
20 |
12 |
7.5 |
M12 |
870 |
48 |
|
TM-P2EF |
160m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
75m6 |
140 |
125 |
20 |
12 |
7.5 |
M12 |
1120 |
57 |
|
TM-P2F |
165m6 |
300 |
275 |
40 |
22 |
13 |
M20 |
85m6 |
170 |
150 |
22 |
14 |
9 |
M16 |
1250 |
65 |
|
TM-P2FG |
175m6 |
300 |
270 |
45 |
25 |
15 |
M20 |
85m6 |
170 |
150 |
22 |
14 |
9 |
M16 |
1510 |
79 |
