发布时间：2022-05-10 16:17:39 人气：
|

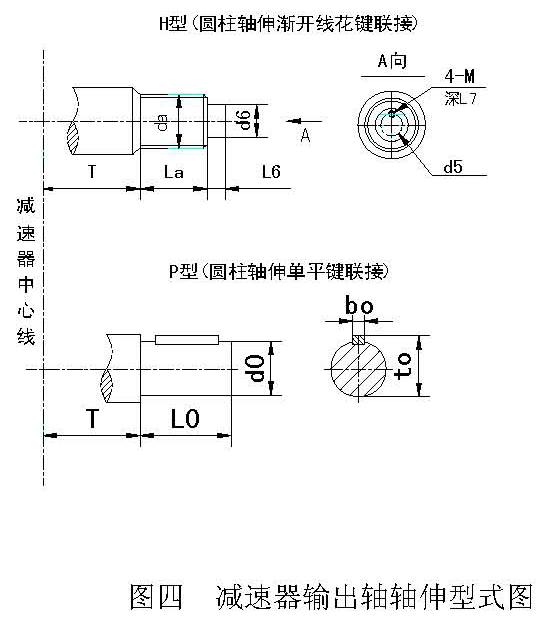

规
格 |
P型 |
H型 | ||||||||||
|
d0 |
l0 |
b0 |
t0 |
花键副参数(GB/T3478.1-1998) |
da |
la |
d5 |
M |
d6 |
l6 |
l7 | |
|
100 |
75 |
140 |
20 |
79.5 |
INT/EXT31Z×2m×30P×6H/6h |
64 |
110 |
40 |
6 |
55 |
23 |
12 |
|
125 |
80 |
170 |
22 |
85 |
INT/EXT27Z×3m×30P×6H/6h |
84 |
130 |
50 |
6 |
70 |
27 |
12 |
|
140 |
90 |
170 |
25 |
95 |
INT/EXT30Z×3m×30P×6H/6h |
93 |
130 |
60 |
8 |
80 |
30 |
16 |
|
170 |
100 |
210 |
28 |
106 |
INT/EXT35Z×3m×30P×6H/6h |
108 |
165 |
70 |
8 |
90 |
30 |
16 |
|
235 |
120 |
210 |
32 |
127 |
INT/EXT35Z×3m×30P×6H/6h |
108 |
165 |
70 |
8 |
90 |
30 |
16 |
|
280 |
130 |
250 |
32 |
137 |
INT/EXT35Z×4m×30P×6H/6h |
144 |
200 |
80 |
10 |
120 |
40 |
20 |
|
335 |
150 |
250 |
36 |
158 |
INT/EXT30Z×5m×30P×6H/6h |
155 |
200 |
100 |
10 |
140 |
45 |
20 |
|
400 |
160 |
300 |
40 |
169 |
INT/EXT35Z×5m×30P×6H/6h |
180 |
240 |
135 |
12 |
160 |
50 |
24 |
|
450 |
170 |
300 |
40 |
179 |
INT/EXT35Z×5m×30P×6H/6h |
180 |
240 |
135 |
12 |
160 |
50 |
24 |
|
500 |
180 |
300 |
45 |
190 |
INT/EXT35Z×6m×30P×6H/6h |
216 |
280 |
160 |
16 |
190 |
55 |
32 |
|
560 |
200 |
350 |
45 |
210 |
INT/EXT30Z×8m×30P×6H/6h |
248 |
280 |
180 |
16 |
220 |
60 |
32 |
|
630 |
220 |
350 |
50 |
231 |
INT/EXT30Z×8m×30P×6H/6h |
248 |
280 |
180 |
20 |
220 |
60 |
40 |
|
750 |
250 |
410 |
56 |
262 |
INT/EXT35Z×8m×30P×6H/6h |
288 |
330 |
210 |
20 |
250 |
70 |
40 |
|
800 |
280 |
470 |
63 |
292 |
INT/EXT35Z×8m×30P×6H/6h |
288 |
380 |
210 |
24 |
250 |
70 |
48 |
|
900 |
300 |
470 |
70 |
314 |
INT/EXT30Z×10m×30P×6H/6h |
310 |
380 |
220 |
24 |
280 |
75 |
48 |
|
1000 |
380 |
550 |
80 |
395 |
INT/EXT35Z×10m×30P×6H/6h |
360 |
450 |
250 |
24 |
320 |
75 |
48 |
